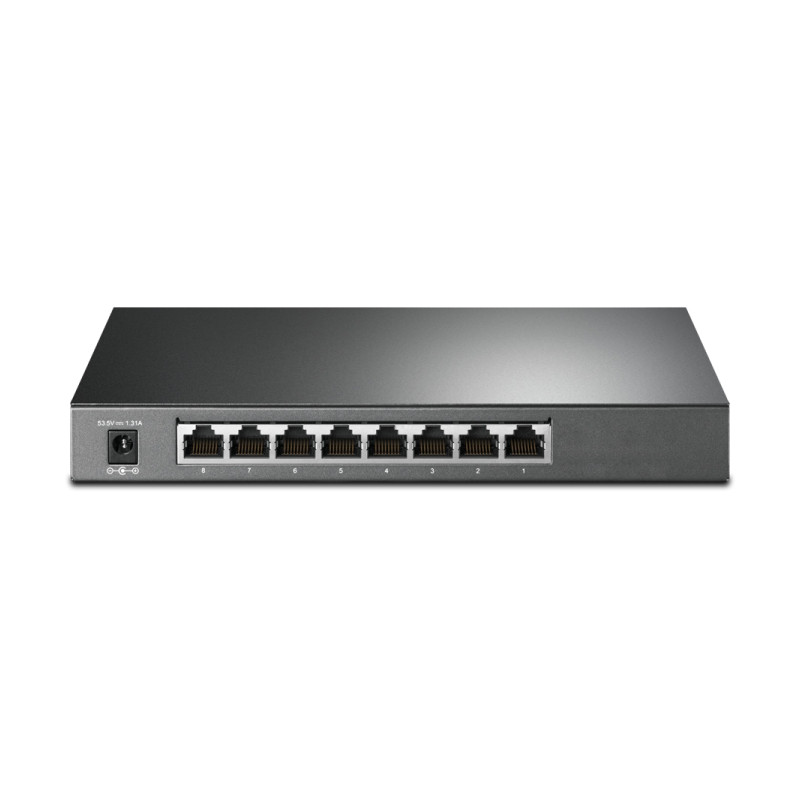

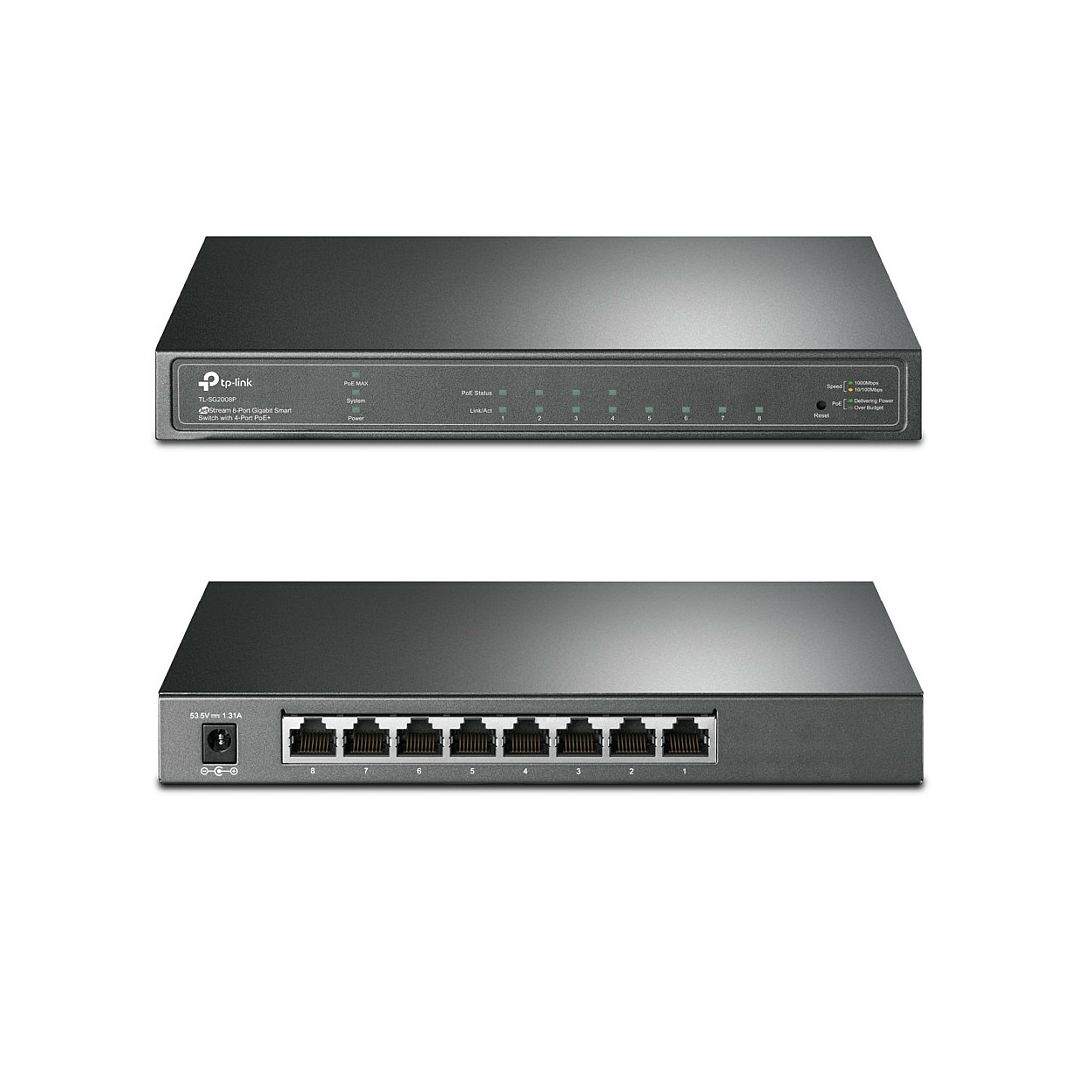

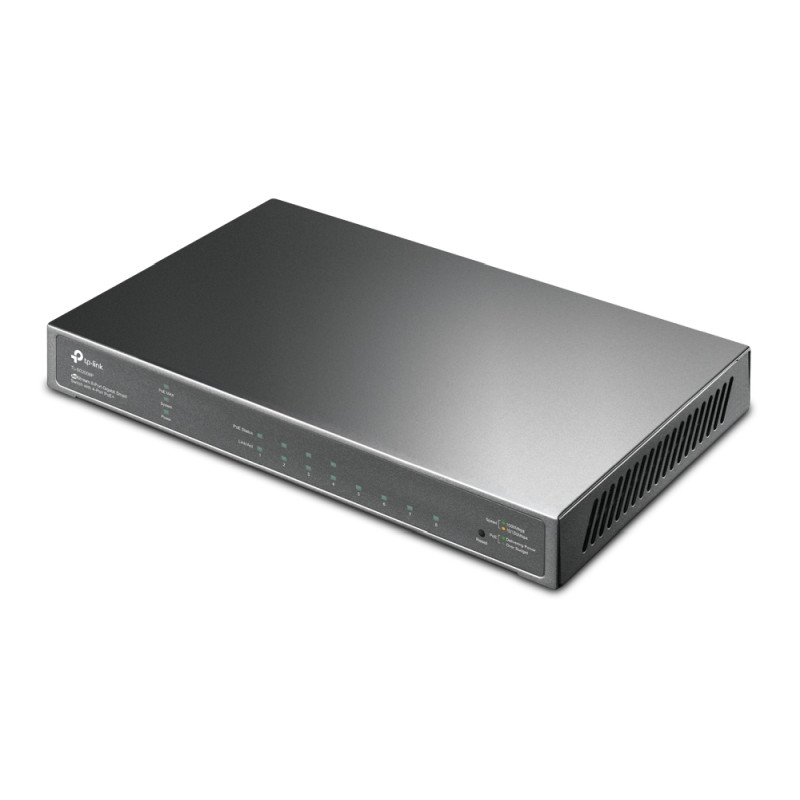

TP-Link Omada JetStream 8-port Gigabit Smart PoE+ preklopnik (Switch), 8×10/100/1000M RJ45 ports, 4×PoE+ ports (64W)

Features- 62W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62W- Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections- Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring- Centralized Management: Cloud access and Omada app for ultra convenience and easy management- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snoopingSpecificationsHARDWARE FEATURES- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x- Interface:* 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)* Auto-Negotiation/Auto MDI/MDIX- Network Media:* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)* 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)- Fan Quantity: Fanless- Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)- Power Consumption:* 7.9 W (220 V/50 Hz) (no PD connected)* 79.2 W (220 V/50 Hz) (with 62 W PD connected)- PoE Ports (RJ45):* Standard: 802.3af/at compliant* PoE Ports: 4 Ports* Power Supply: 62 W*- Dimensions (W×D×H): 209×126×26 mmPERFORMANCE- Bandwidth/Backplane: 16 Gbps- MAC Address Table: 8k- Packet Buffer Memory: 4.1 Mbit- Jumbo Frame: 9 KBSOFTWARE FEATURES- Quality of Service:* 802.1p CoS/DSCP priority* 8 priority queues* Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)* Queue Weight Config* Bandwidth Control: Port/Flow-based Rating Limit* Smoother Performance* Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control- L2 and L2+ Features:* DHCP Relay: DHCP VLAN Relay* DHCP L2 Relay* Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group* Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter/Protect, Root Protect* Loopback Detection* Flow Control: 802.3x Flow Control* Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both* Device Link Detect Protocol (DLDP)* 802.1ab LLDP/ LLDP-MED- L2 Multicast:* 511 IPv4, IPv6 shared multicast groups* IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config* Multicast VLAN Registration (MVR)* Multicast Filtering* MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config* Limited IP Multicast (256 profiles and 16 entries per profile)- IPv6 Support:* IPv6 Dual IPv4/IPv6* Multicast Listener Discovery (MLD) Snooping* IPv6 neighbor discovery (ND)* Path maximum transmission unit (MTU) discovery* Internet Control Message Protocol (ICMP) version 6* TCPv6/UDPv6* IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP- VLAN:* VLAN Group: Max. 4K VLAN Groups* 802.1Q tag VLAN* MAC VLAN* Protocol VLAN* GVRP* Voice VLAN- Access Control List:* Support up to 230 entries* Time-Range: Time Slice, Week Time-Range, Absolute Time-Range, Holiday* Time-based ACL* MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type* IP ACL: Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS* IPv6 ACL* Combined ACL* Rule Operation: Permit/Deny* Policy Action: Mirror, Rate Limit, Redirect, QoS Remark* ACL Rules Binding: Port Binding, VLAN Binding* Actions for flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark- Security:* AAA* 802.1X: Port-based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability* IP/IPv6-MAC Binding: 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection* IP Source Guard: 253 Entries, Source IP+Source MAC* IPv6 Source Guard: 183 Entries, Source IPv6 Address+Source MAC* DoS Defend* Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port* Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode* Port Isolation* Secure web management through HTTPS with SSLv3/TLS 1.2* Secure Command Line Interface (CLI) management with SSHv1/SSHv2* IP/Port/MAC-based access control- MIBs:* MIB II (RFC1213)* Bridge MIB (RFC1493)* P/Q-Bridge MIB (RFC2674)* Radius Accounting Client MIB (RFC2620)* Radius Authentication Client MIB (RFC2618)* Remote Ping, Traceroute MIB (RFC2925)* Support TP-Link private MIBs* RMON MIB(RFC1757, rmon 1,2,3,9)MANAGEMENT- Omada App: Yes- Centralized Management:* Omada Hardware Controller (OC300)* Omada Hardware Controller (OC200)* Omada Software Controller- Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)- Management Features:* Web-based GUI* Command Line Interface (CLI) through telnet* SNMPv1/v2c/v3* SNMP Trap/Inform* RMON (1,2,3,9 groups)* SDM Template* DHCP/BOOTP Client* Dual Image, Dual Configuration* CPU Monitoring* Cable Diagnostics* EEE* SNTP* System LogOTHERS- Certification: CE, FCC, RoHS- Package Contents: TL-SG2008P, Power Adapter, Installation Guide, Rubber Feet- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux- Environment:* Operating Temperature: 0C to 40 (32F to 104)* Storage Temperature: -40C to 70 (-40F to 158)* Operating Humidity: 10% – 90% RH non-condensing* Storage Humidity: 5% – 90% RH non-condensing
