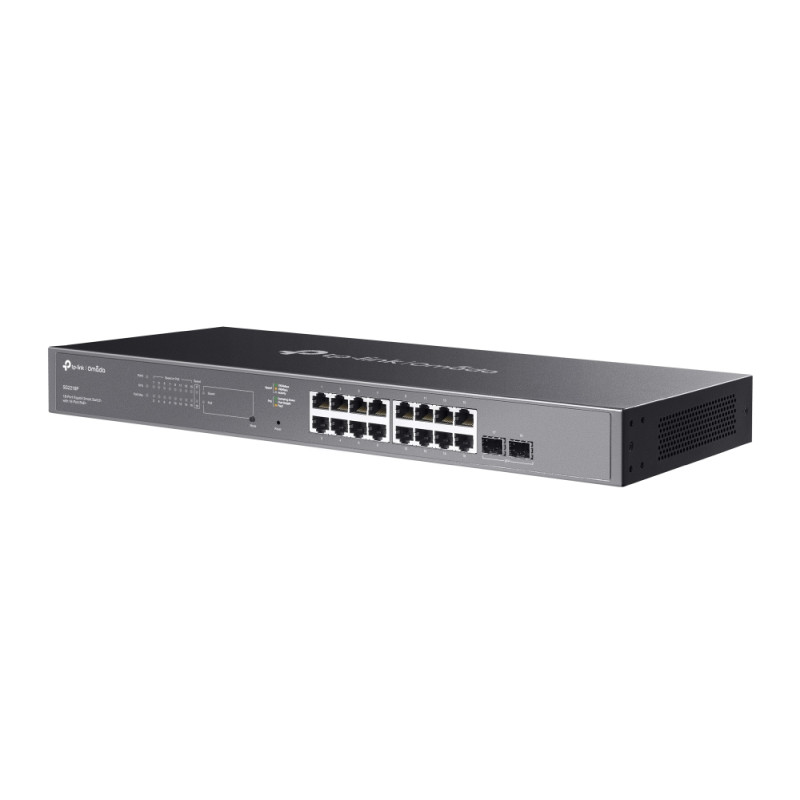

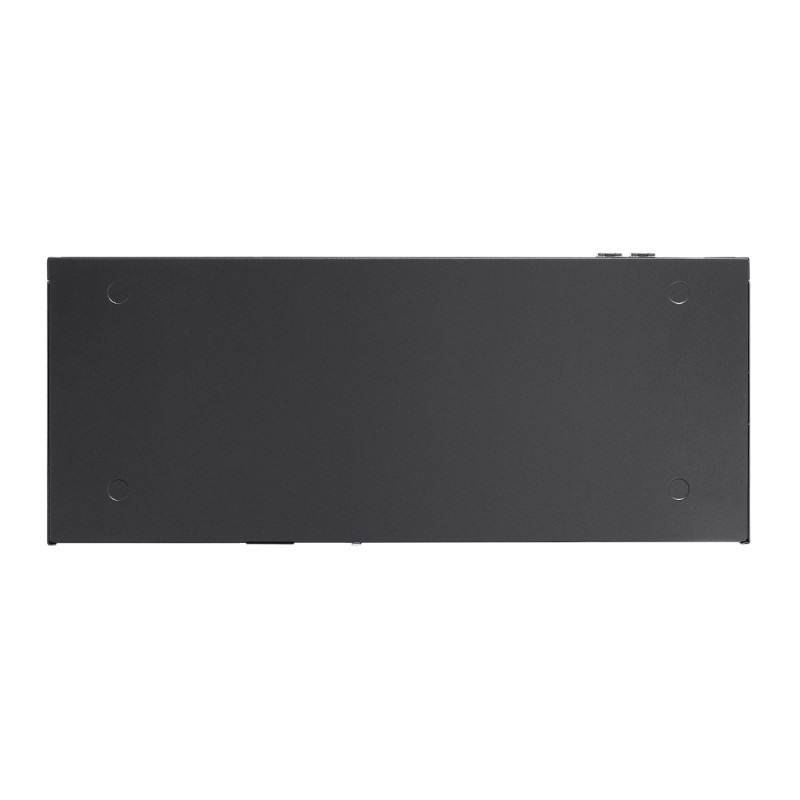

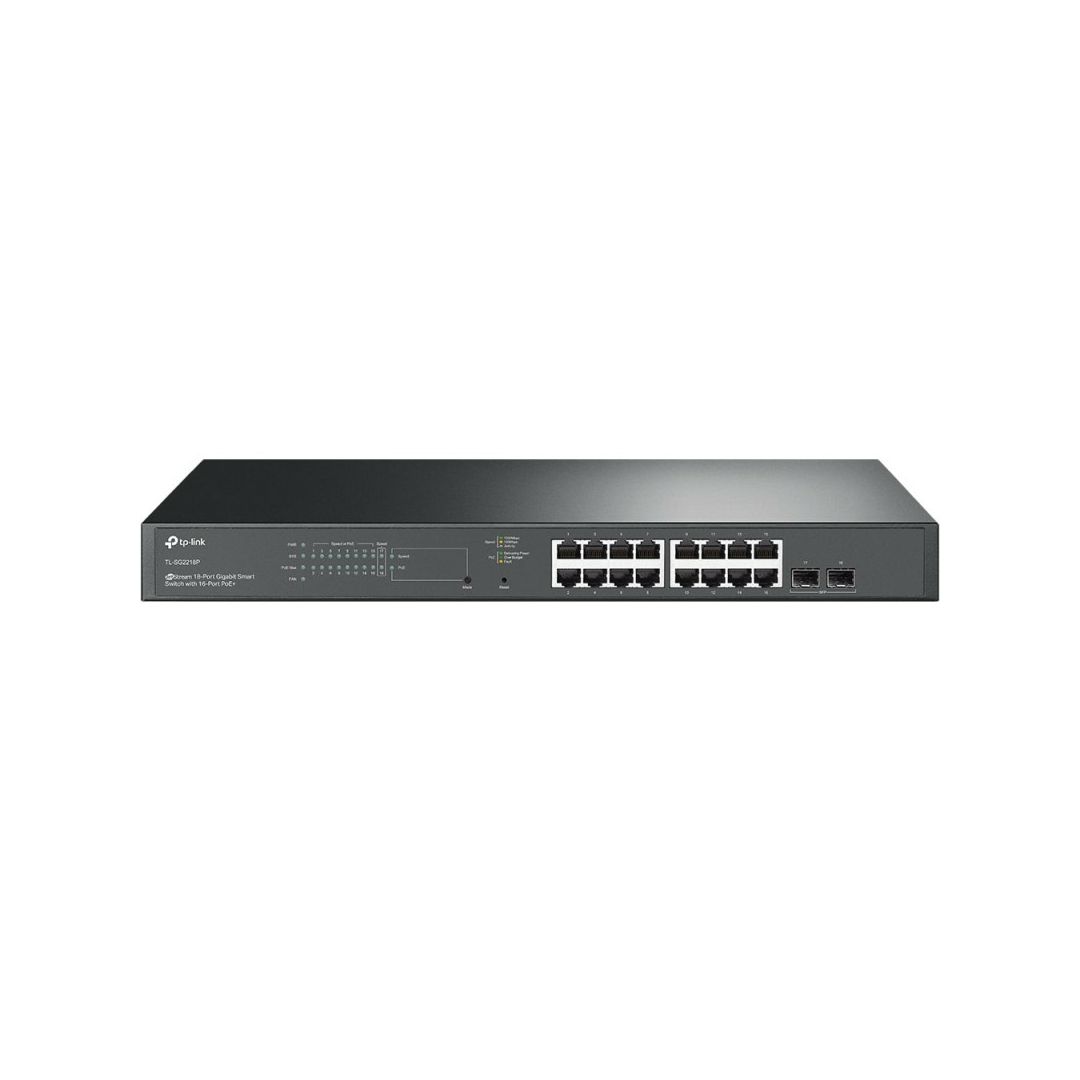

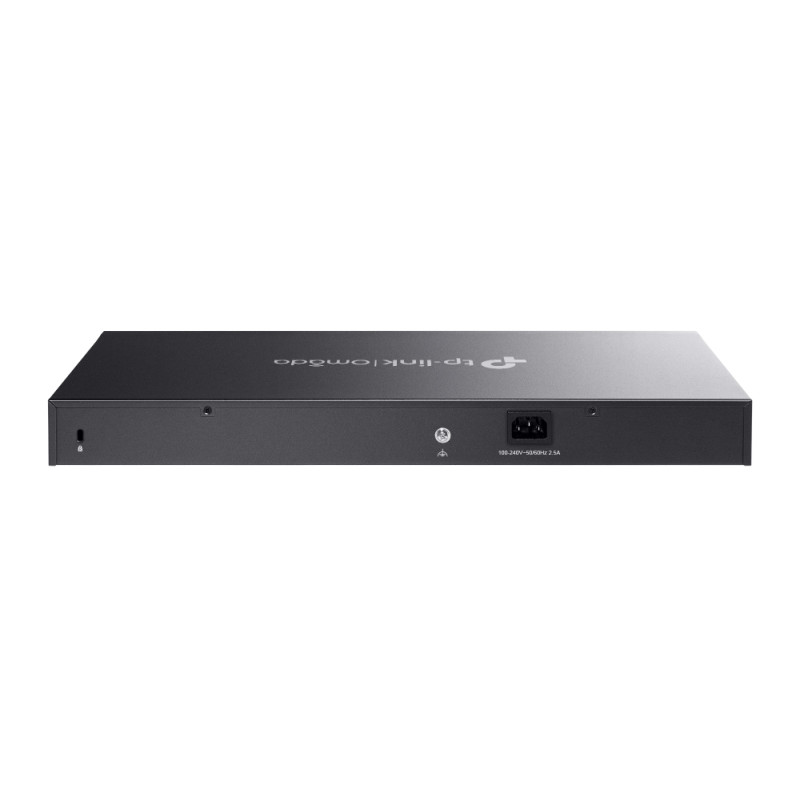

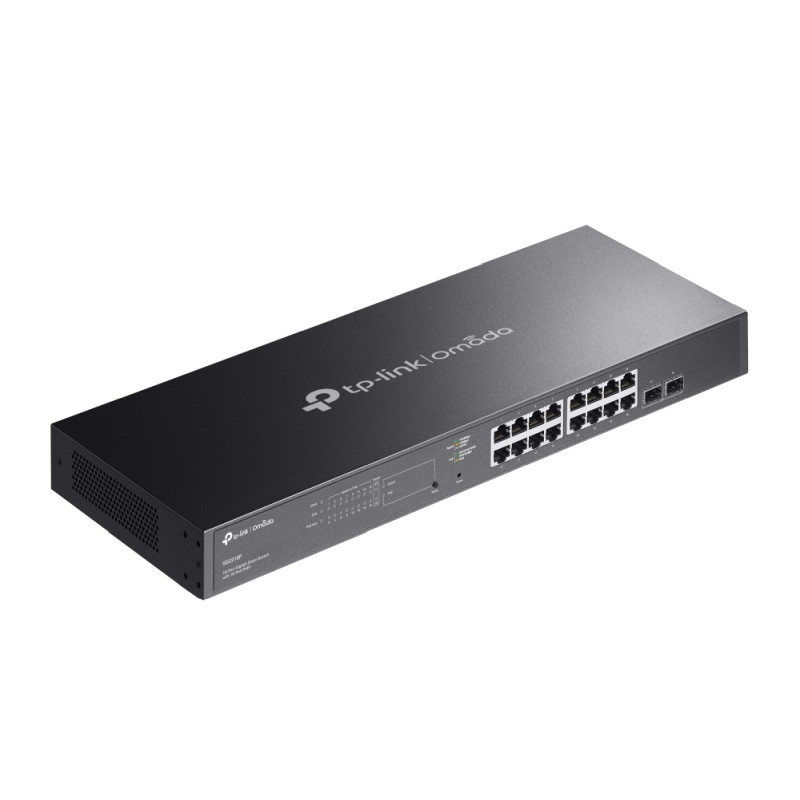

TP-Link Omada JetStream 18-port Gigabit PoE+ upravljiv preklopnik (Switch), 16×G-LAN PoE+, 2×SFP Gigabit, IPv6, 1U 19″ rack-mount kućište (150W)

Šifra: 58675

329,14

Cijena za plaćanje gotovinom prilikom dostave, internet bankarstvom ili Maestro i Visa karticom jednokratno.

312,68

Raspoloživost: Webshop

Besplatna dostava

Brza dostava

u roku 2 - 3 dana

Plaćanje

do 24 rate bez kamata

Mogućnost povrata

u roku od 14 dana

Opis

– 150 W PoE Budget: 16× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
– Full Gigabit Ports: 16× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
– Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
– Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
– Static Routing: Helps route internal traffic for more efficient use of network resources.
– Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
– Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
– IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Software Defined Networking (SDN) with Cloud Access
– Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management.
Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
– Interface
* 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
* 2× Gigabit SFP Slots
– Network Media
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
* 1000BASE-X: MMF, SMF
– Fan Quantity: 1
– Power Supply: 100-240V AC, 50/60Hz
– PoE Ports (RJ45)
* Standard: 802.3at/af compliant
* PoE+ Ports: 16 Ports
* PoE Power Budget: 150 W*
– Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
– Mounting: Rack Mountable
– Max Power Consumption
* 181.4 W (110 V/60 Hz) (with 150 W PD connected)
* 178.3 W (220 V/50 Hz) (with 150 W PD connected)
– Max Heat Dissipation
* 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
* 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)

PERFORMANCE
– Switching Capacity: 36 Gbps
– Packet Forwarding Rate: 26.78 Mpps
– MAC Address Table: 8K
– Packet Buffer Memory: 4.1 Mbit
– Jumbo Frame: 9 KB

SOFTWARE FEATURES
Quality of Service
– 802.1p CoS/DSCP priority
– 8 priority queues
– Priority Schedule Mode
* SP (Strict Priority)
* WRR (Weighted Round Robin)
– Queue Weight Config
– Bandwidth Control
* Port/Flow based Rating Limit
– Smoother Performance
– Storm Control
* Multiple Control Modes(kbps/ratio)
* Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features
– 16 IP Interfaces
* Support IPv4/IPv6 Interface
– Static Routing
* 32 IPv4/IPv6 Static Routes
– DHCP Server
– DHCP Relay
* DHCP Interface Relay
* DHCP VLAN Relay
– DHCP L2 Relay
– Static ARP
– Proxy ARP
– Gratuitous ARP
– Link Aggregation
* Static link aggregation
* 802.3ad LACP
* Up to 8 aggregation groups and up to 8 ports per group
– Spanning Tree Protocol
* 802.1D STP
* 802.1w RSTP
* 802.1s MSTP
* STP Security: TC Protect, BPDU Filter/Protect, Root Protect
– Loopback Detection
– Flow Control
* 802.3x Flow Control
– Mirroring
* Port Mirroring
* CPU Mirroring
* One-to-One
* Many-to-One
* Flow-Based
* Ingress/Egress/Both
– Device Link Detect Protocol (DLDP)
* 802.1ab LLDP/ LLDP-MED

VLAN
– VLAN Group
* Max. 4K VLAN Groups
– 802.1Q tag VLAN
– MAC VLAN: 12 Entries
– Protocol VLAN
– GVRP
– Voice VLAN

Access Control List
– Support up to 230 entries
– Time-Range
* Time Slice
* Week Time-Range
* Absolute Time-Range
* Holiday
– Time-based ACL
– MAC ACL
* Source MAC
* Destination MAC
* VLAN ID
* User Priority
* Ether Type
– IP ACL
* Source IP
* Destination IP
* IP Protocol
* TCP Flag
* TCP/UDP Source Port
* TCP/UDP Destination Port
* DSCP/IP TOS
– IPv6 ACL
– Combined ACL
– Rule Operation
* Permit/Deny
– Policy Action
* Mirror
* Rate Limit
* Redirect
* QoS Remark
– ACL Rules Binding
* Port Binding
* VLAN Binding
– Actions for flows
* Mirror (to supported interface)
* Redirect (to supported interface)
* Rate Limit
* QoS Remark

Security
– AAA
* 802.1X
* Port based authentication
* MAC (Host) based authentication
* Authentication Method includes PAP/EAP-MD5
* MAB
* Guest VLAN
* Support Radius authentication and accountability
– IP/IPv6-MAC Binding
* 512 Binding Entries
* DHCP Snooping
* DHCPv6 Snooping
* ARP Inspection
* ND Detection
– IP Source Guard
* 253 Entries
* Source IP+Source MAC
– IPv6 Source Guard
* 183 Entries
* Source IPv6 Address+Source MAC
– DoS Defend
– Static/Dynamic/Permanent Port Security
* Up to 64 MAC addresses per port
– Broadcast/Multicast/Unicast Storm Control
* kbps/ratio control mode
– Port Isolation
– Secure web management through HTTPS with SSLv3/TLS 1.2
– Secure Command Line Interface (CLI) management with SSHv1/SSHv2
– IP/Port/MAC based access control

IPv6
– IPv6 Static Routing and ACL
– IPv6 Dual IPv4/IPv6
– IPv6 Interface
– Multicast Listener Discovery (MLD) Snooping
– IPv6 neighbor discovery (ND)
– Path maximum transmission unit (MTU) discovery
– Internet Control Message Protocol (ICMP) version 6
– TCPv6/UDPv6
– IPv6 applications
* DHCPv6 Client
* Ping6
* Tracert6
* Telnet(v6)
* IPv6 SNMP
* IPv6 SSH
* IPv6 SSL
* Http/Https
* IPv6 TFTP

Advanced Features
– Automatic Device Discovery
– Batch Configuration
– Batch Firmware Upgrading
– Intelligent Network Monitoring
– Abnormal Event Warnings
– Unified Configuration
– Reboot Schedule

MIBs
– MIB II (RFC1213)
– Bridge MIB (RFC1493)
– P/Q-Bridge MIB (RFC2674)
– Radius Accounting Client MIB (RFC2620)
– Radius Authentication Client MIB (RFC2618)
– Remote Ping, Traceroute MIB (RFC2925)
– Support TP-Link private MIBs
– RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT
Omada App
Yes, through
– Omada Cloud-Based Controller
– OC300
– OC200
– Omada Software Controller

Centralized Management
– Omada Cloud-Based Controller
– Omada Hardware Controller OC300
– Omada Hardware Controller OC200
– Omada Software Controller

Cloud Access
Yes, through:
– Omada Cloud-Based Controller
– OC300
– OC200
– Omada Software Controller

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller

Management Features
– Web-based GUI
– Command Line Interface (CLI) through telnet
– SNMPv1/v2c/v3
– SNMP Trap/Inform
– RMON (1,2,3,9 groups)
– SDM Template
– DHCP/BOOTP Client
– Dual Image, Dual Configuration
– CPU Monitoring
– Cable Diagnostics
– EEE
– SNTP
– System Log

OTHERS
– Certification: CE, FCC, RoHS
– Package Contents: TL-SG2218P
– Power Cord
– Installation Guide
– Rackmount Kit
– Rubber Feet

System Requirements
– Microsoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.

Environment
– Operating Temperature: 0–50 ? (32–122 ?);
– Storage Temperature: -40–70 ? (-40–158 ?)
– Operating Humidity: 10–90% RH non-condensing
– Storage Humidity: 5–90% RH non-condensing
