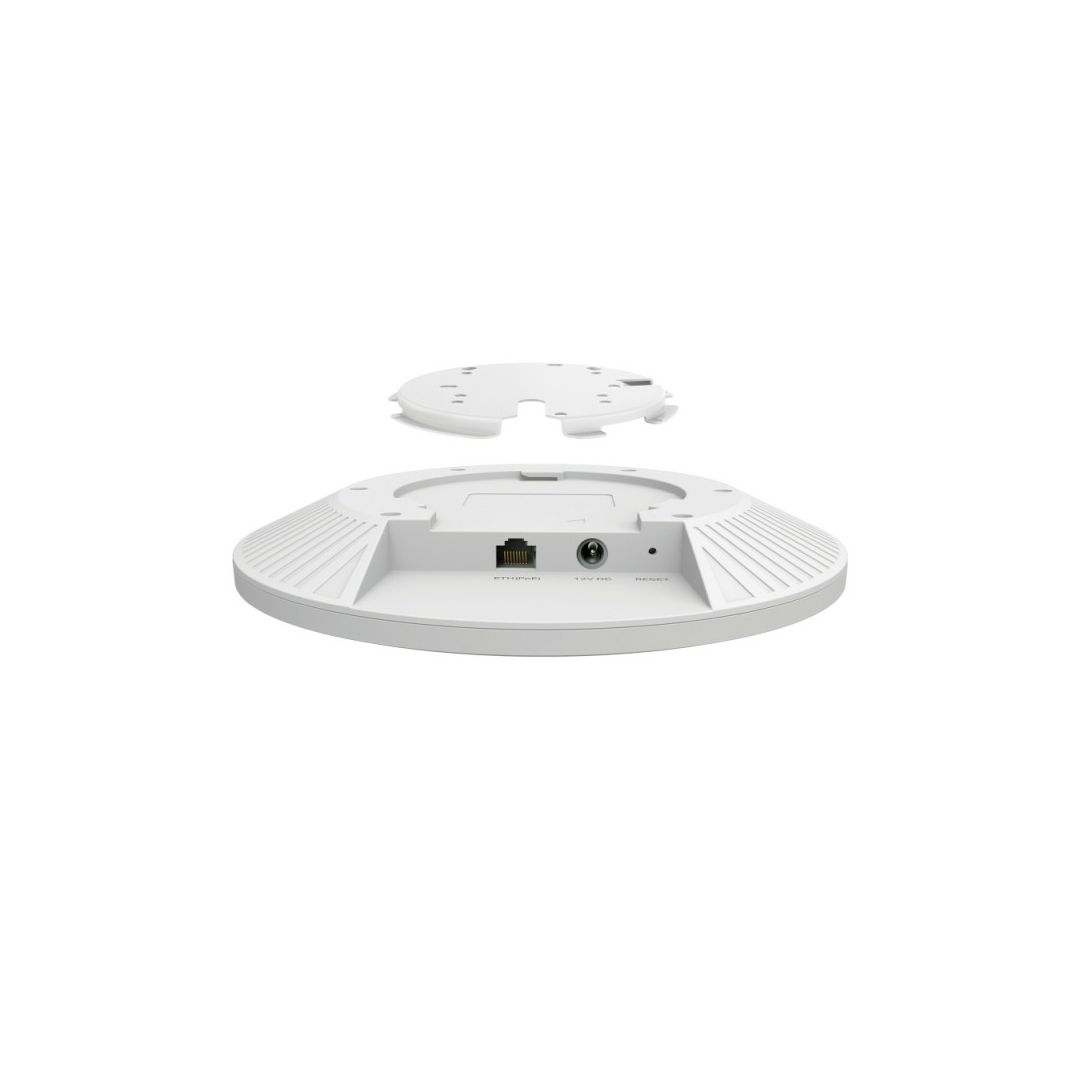

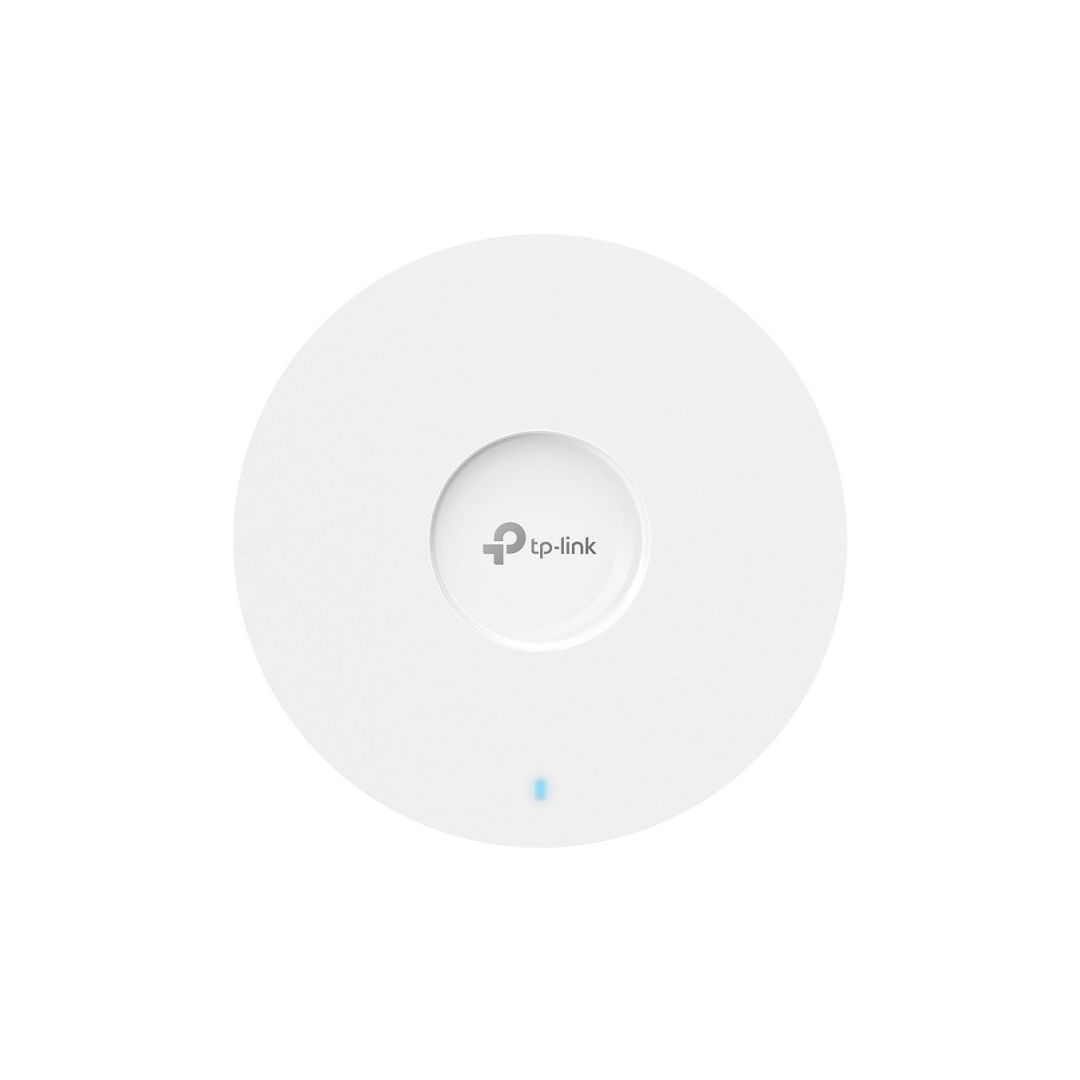

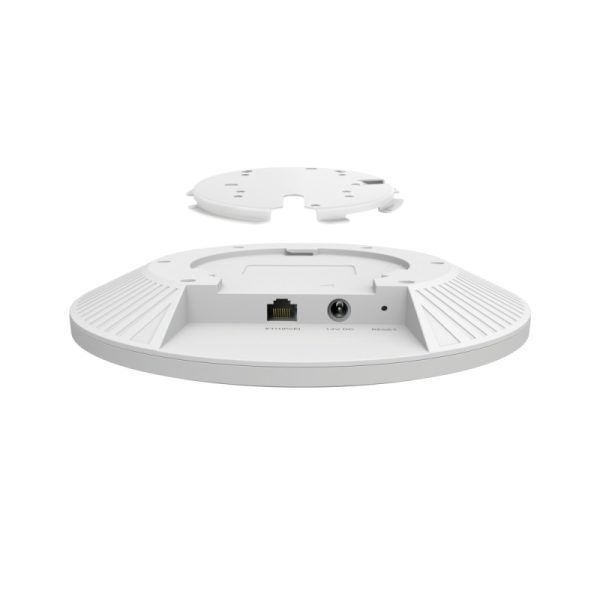

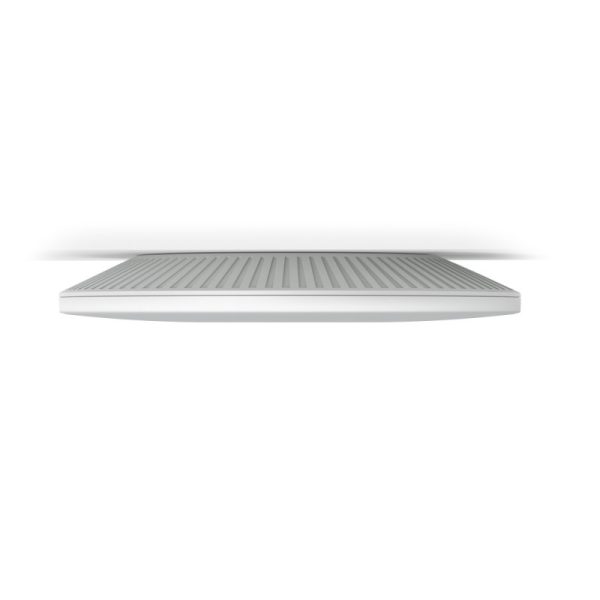

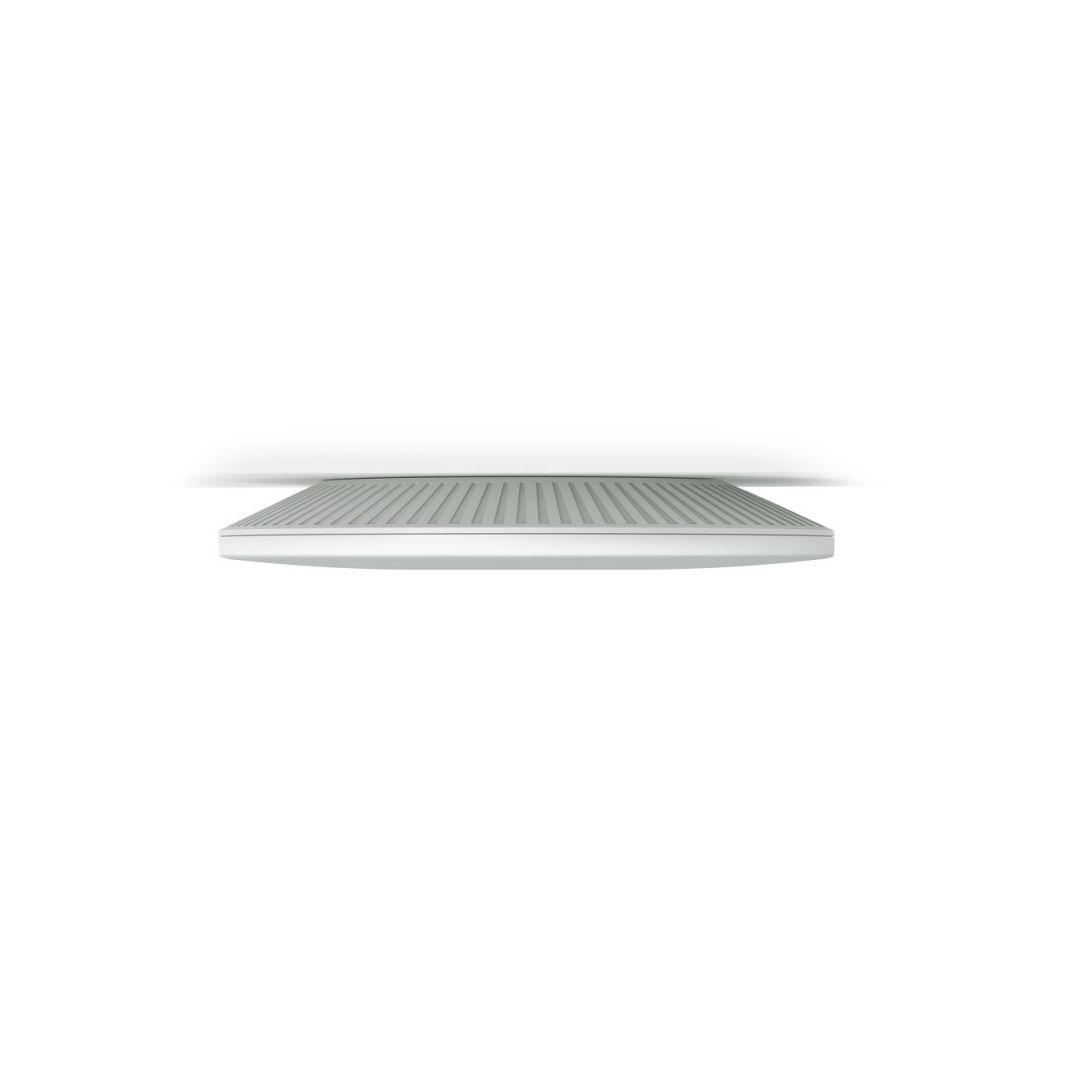

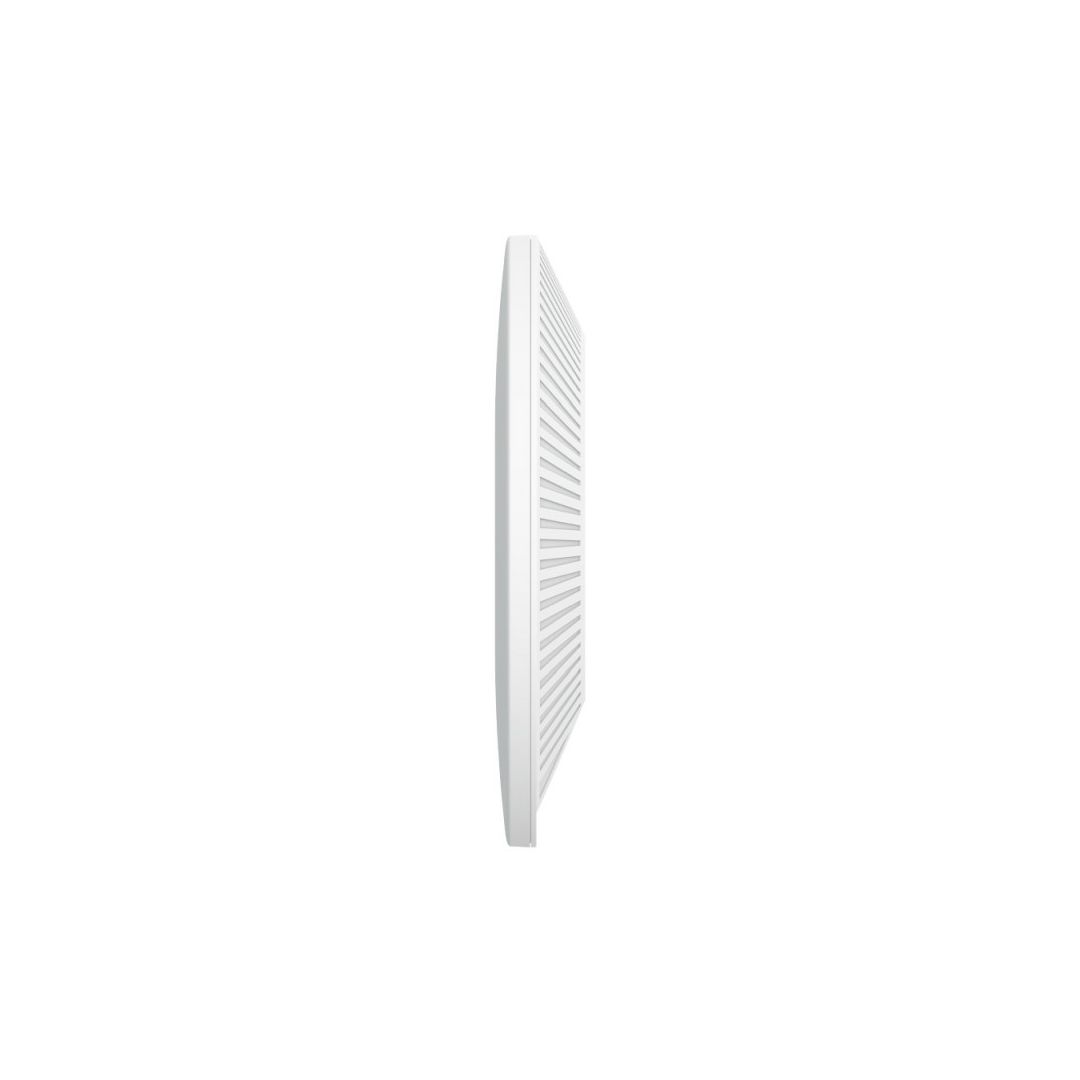

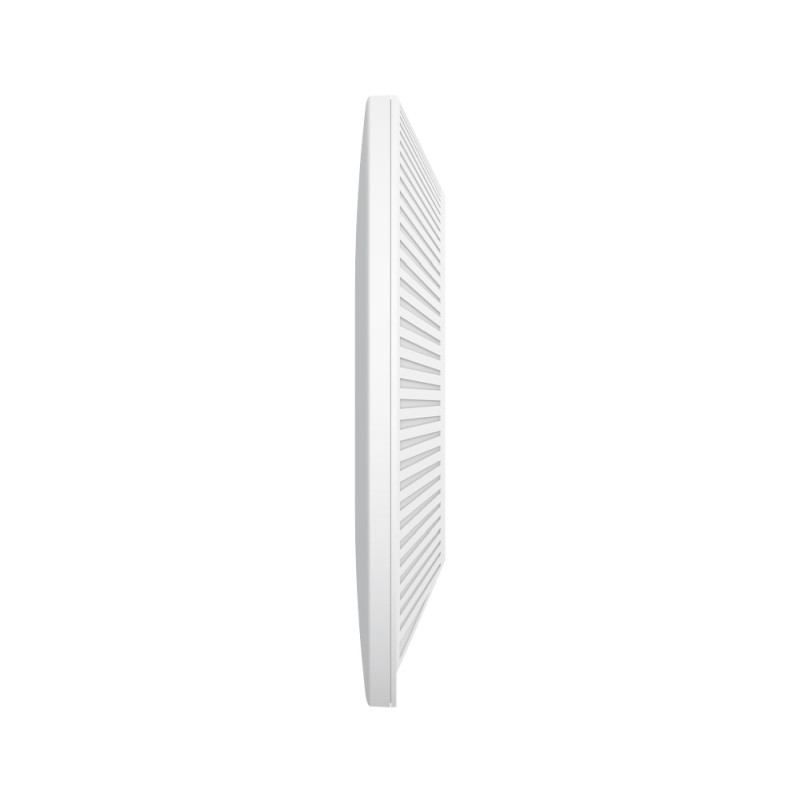

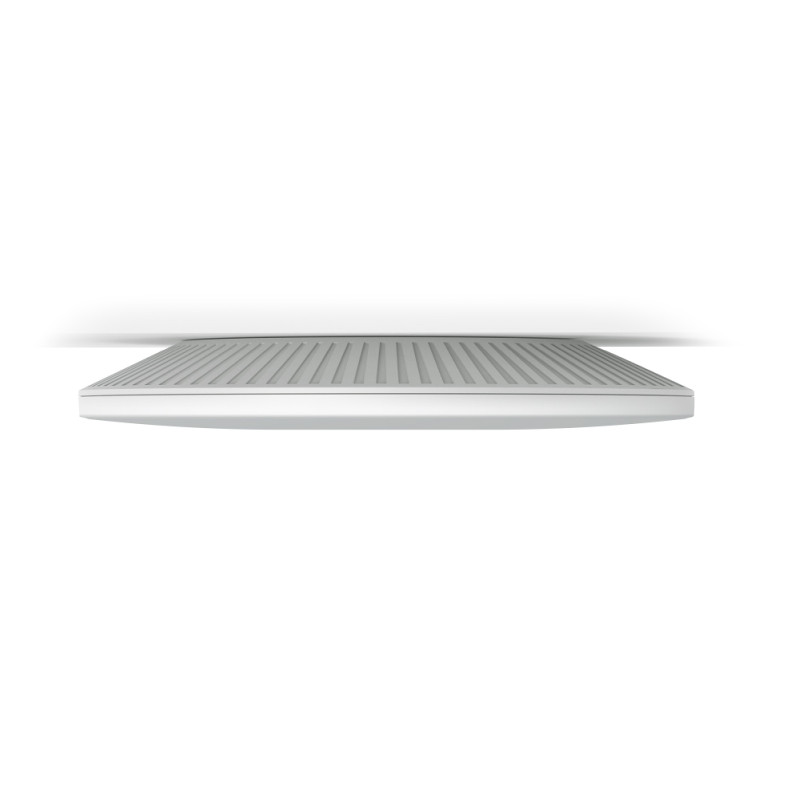

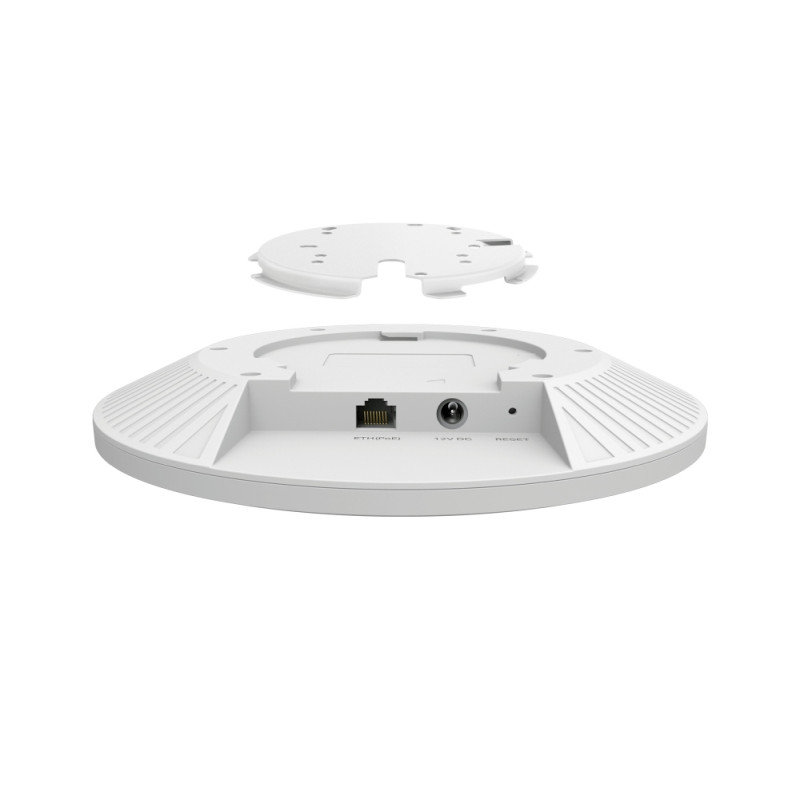

– Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz† – Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power. – Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡ – Integrates with the Omada SDN platform for centralized management. – Advanced Features: Omada Mesh, Seamless Roaming, and more.§ – PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)SpecifikacijeHARDWARE FEATURES – Interface: 1× 2.5 Gigabit PoE+ Port – Button: Reset – Power Supply * 802.3at PoE * 12 V / 2 A DC – Note:Power adapter is not included. – Power Consumption * EU: 20.43W * US: 23.69W – Dimensions ( W x D x H ): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) – Antenna Type – Internal Omni * 2.4 GHz: 4× 4 dBi * 5 GHz: 4× 5 dBi – Bluetooth: Yes – Mounting: Ceiling /Wall Mounting (Kits included)WIRELESS FEATURES – Coverage: 185?(2000ft2) – Concurrent Clients: 510+ – Wireless Standards: IEEE 802.11ax/ac/n/g/b/a – Frequency: 2.4 GHz and 5 GHz – Signal Rate * 5 GHz: Up to 4804 Mbps * 2.4 GHz: Up to 1148 Mbps – Wireless Functions * 1024-QAM * 4× Longer OFDM Symbol * OFDMA * Multiple SSIDs (Up to 16 SSIDs, 8 for each band) * Enable/Disable Wireless Radio * Automatic Channel Assignment * Transmit Power Control (Adjust Transmit Power on dBm) * QoS(WMM) * MU-MIMO * HE160 (160 MHz Bandwidth)‡ * Seamless Roaming § * Omada Mesh§ * Band Steering * Load Balance * Airtime Fairness * Beamforming * Rate Limit * Reboot Schedule * Wireless Schedule * Wireless Statistics based on SSID/AP/Client – Wireless Security * Captive Portal Authentication§ * Access Control * Wireless Mac Address Filtering * Wireless Isolation Between Clients * SSID to VLAN Mapping * Rogue AP Detection * 802.1X Support * WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise – Transmission Power * CE: * FCC: MANAGEMENT – Omada App: Yes – Centralized Management * Omada Hardware Controller (OC300) * Omada Hardware Controller (OC200) * Omada Software Controller * Omada Cloud-Based Controller – Cloud Access: Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. – Email Alerts: Yes – LED ON/OFF Control: Yes – Management MAC Access Control: Yes – SNMP: v1, v2c, v3 – System Logging: * Local/Remote Syslog * Local/Remote Syslog – SSH: Yes – Web-based Management: HTTP/HTTPS – L3 Management: Yes – Multi-site Management: Yes – Management VLAN: Yes – Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.OTHERS – Certification: CE,FCC,RoHS – Package Contents * EAP683 UR * Ceiling/Wall Mounting Kits * Installation Guide – System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux – Environment * Operating Temperature: 0–40 ? (32–104 ?) * Storage Temperature: -40–70 ? (-40–158 ?) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH non-condensing
SKU:
60885
209,29 €
-5% popusta za plaćanje gotovinom ili karticom jednokratno(ne vrijedi za Mastercard, Diners i Visa Premium): 198,83 €
Raspoloživost: Webshop✓
-
100% Sigurna kupovina
-
Mogućnost povrata u roku 17 dana
-
Brza dostava u roku 2 do 3 dana
Opis
