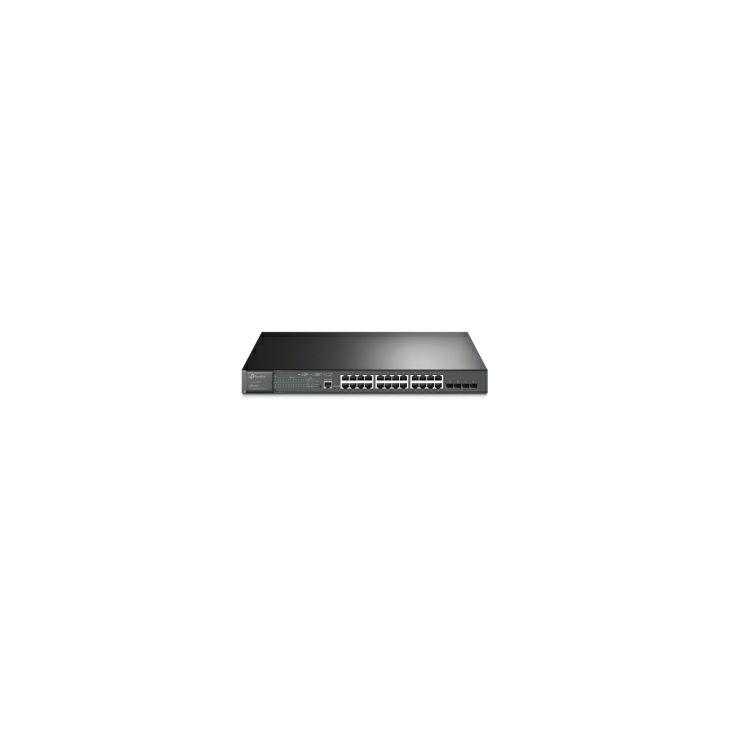

TP-Link JetStream 28-port Gigabit L2+ upravljiv PoE+ preklopnik (Switch), 24×10/100/1000M RJ45 ports, 4×Gbit SFP, RJ45/Micro-USB Console port, 1U 19″ rack mount (384W)

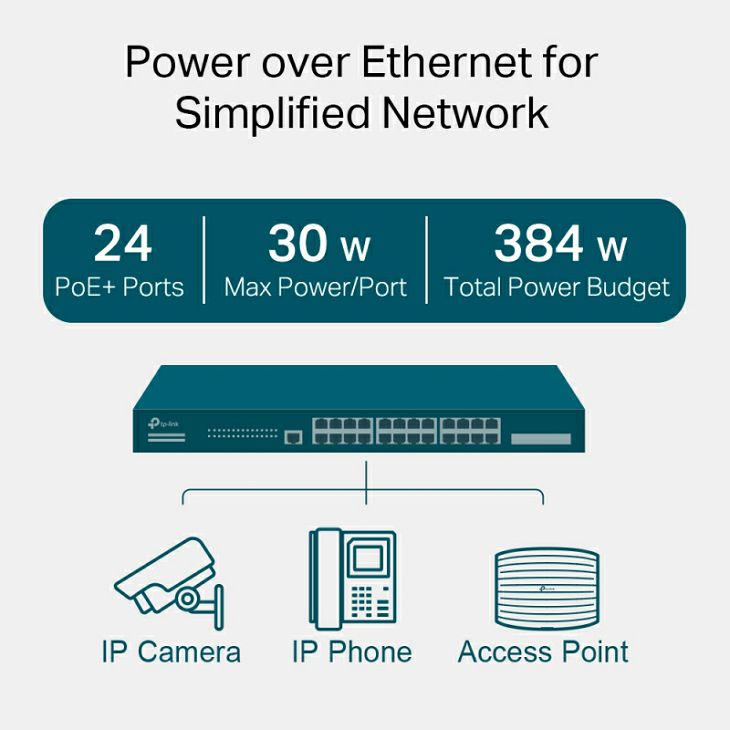

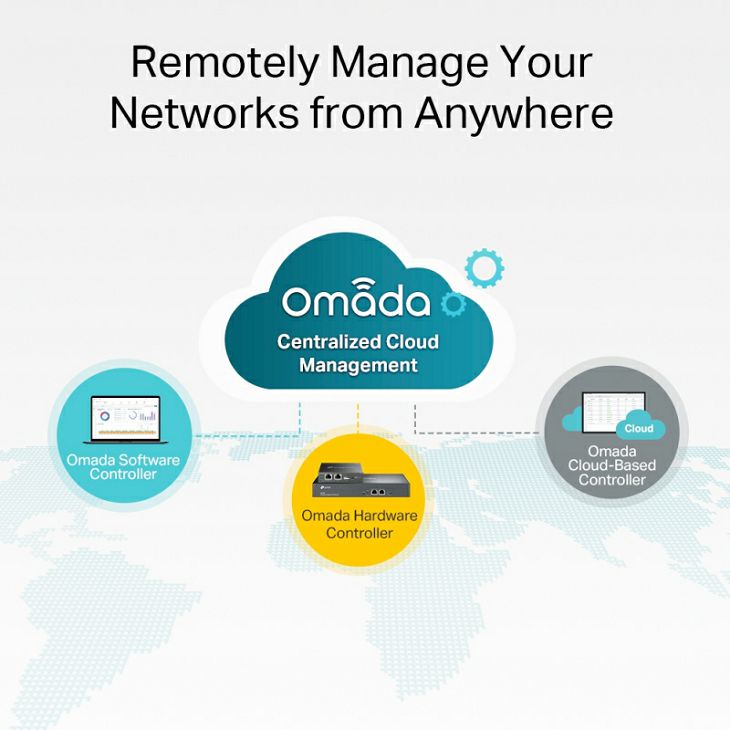

– 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W- Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring- Centralized Management: Cloud access and Omada app for ultra convenience and easy management- Static Routing: Helps route internal traffic for more efficient use of network resources- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilitiesSpecificationsHARDWARE FEATURES- Interface:* 24 10/100/1000Mbps RJ45 Ports* 4 Gigabit SFP Slots* 1 RJ45 Console Port* 1 Micro-USB Console Port- Fan Quantity: 2- Power Supply: 100-240 V AC~50/60 Hz- PoE+ Ports(RJ45):* Standard: 802.3at/af compliant* PoE+ Ports: 24 Ports, up to 30 W* Power Supply: 384 W- Dimensions ( W x D x H ): 440×180×44 mm- Mounting: Rack Mountable- Max Power Consumption:* 31.0 W (110 V/60 Hz) (no PD connected)* 463.8 W (110 V/60 Hz) (with 384 W PD connected)- Max Heat Dissipation:* 105.78 BTU/h (110 V/60 Hz) (no PD connected)* 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)PERFORMANCE- Switching Capacity: 56 Gbps- Packet Forwarding Rate: 41.66 Mpps- MAC Address Table: 8K- Jumbo Frame: 9 KBSOFTWARE FEATURES- Quality of Service:* 8 priority queues* 802.1p CoS/DSCP priority* Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR* Bandwidth Control: Port/Flow based Rating Limiting* Smoother Performance* Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit,QoS Remark- L2 and L2+ Features:* Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group* Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, BPDU, Protect, Root Protect, Loop Protect* Loopback Detection, Port-based, VLAN based* Flow Control: 802.3x Flow Control, HOL Blocking Prevention* Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both- L2 Multicast:* Supports 511 (IPv4, IPv6) IGMP groups* IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication* IGMP Authentication* MVR* MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast* Multicast Filtering: 256 profiles and 16 entries per profile-VLAN:* VLAN Group: Max 4K VLAN Groups* 802.1q Tagged VLAN* MAC VLAN: 12 Entries* Protocol VLAN: Protocol Template 16, Protocol VLAN 16* GVRP* VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ* Voice VLAN- Access Control List:* Time-based ACL* MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type* IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority* Combined ACL* Packet Content ACL* IPv6 ACL* Policy: Mirroring, Redirect, Rate Limit, QoS Remark* ACL apply to Port/VLAN- Security* IP-MAC-Port Binding: DHCP Snooping, ARP Inspection, IPv4 Source Guard* IPv6-MAC-Port Binding: DHCPv6 Snooping, ND Detection, IPv6 Source Guard* DoS Defend* Static/Dynamic Port Security: Up to 64 MAC addresses per port* Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode* IP/Port/MAC based access control* 802.1X: Port based authentication, Mac based authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication and accountability* AAA (including TACACS+)* Port Isolation* Secure web management through HTTPS with SSLv3/TLS 1.2* Secure Command Line Interface (CLI) management with SSHv1/SSHv2- IPv6: * IPv6 Dual IPv4/IPv6* Multicast Listener Discovery (MLD) Snooping* IPv6 ACL* IPv6 Interface* Static IPv6 Routing* IPv6 neighbor discovery (ND)* Path maximum transmission unit (MTU) discovery* Internet Control Message Protocol (ICMP) version 6* TCPv6/UDPv6* IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP- L3 Features:* 16 IPv4/IPv6 Interfaces* Static Routing: 48 static routes* Static ARP* 316 ARP Entries* Proxy ARP* Gratuitous ARP* DHCP Server* DHCP Relay* DHCP L2 Relay- Management:* Web-based GUI* Command Line Interface (CLI) through console port, telnet* SNMPv1/v2c/v3: Trap/Inform, RMON (1, 2, 3, 9 groups)* SDM Template* DHCP/BOOTP Client* 802.1ab LLDP/LLDP-MED* DHCP AutoInstall* Dual Image, Dual Configuration* CPU Monitoring* Cable Diagnostics* EEE* Password Recovery* SNTP* System Log- Advanced Features* Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller* Automatic Device Discovery* Batch Configuration* Batch Firmware Upgrading* Intelligent Network Monitoring* Abnormal Event Warnings* Unified Configuration* Reboot Schedule* ZTP (Zero-Touch Provisioning)OTHERS- Certification: CE, FCC, RoHS- Package Contents: Switch, Power Cord, Quick Installation Guide,Rackmount Kit, Rubber Feet- Environment:* Operating Temperature: 0?~45? (32?~113?);* Storage Temperature: -40?~70? (-40?~158?)* Operating Humidity: 10%~90% non-condensing* Storage Humidity: 5%~90% non-condensing
