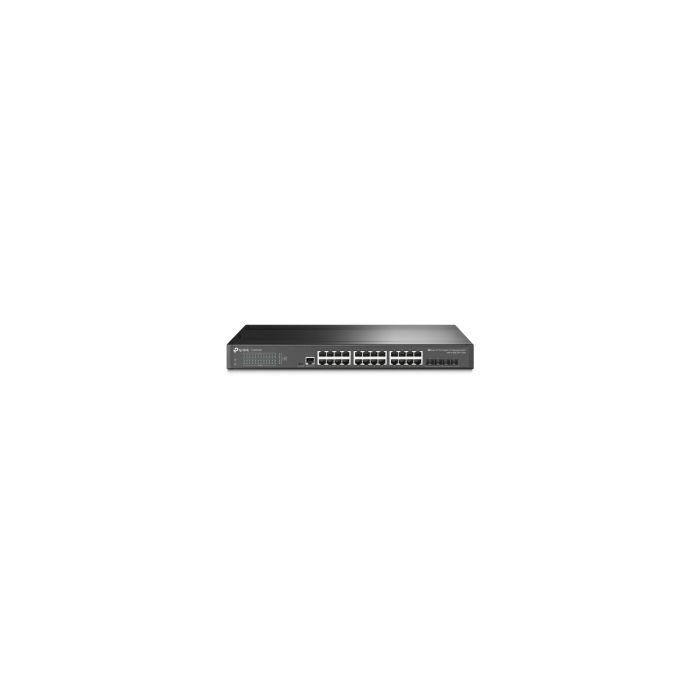

TP-Link JetStream 28-port Gigabit L2+ Smart preklopnik (Switch), 24×G-LAN, 4×10G SFP+, 19″ rack-mount

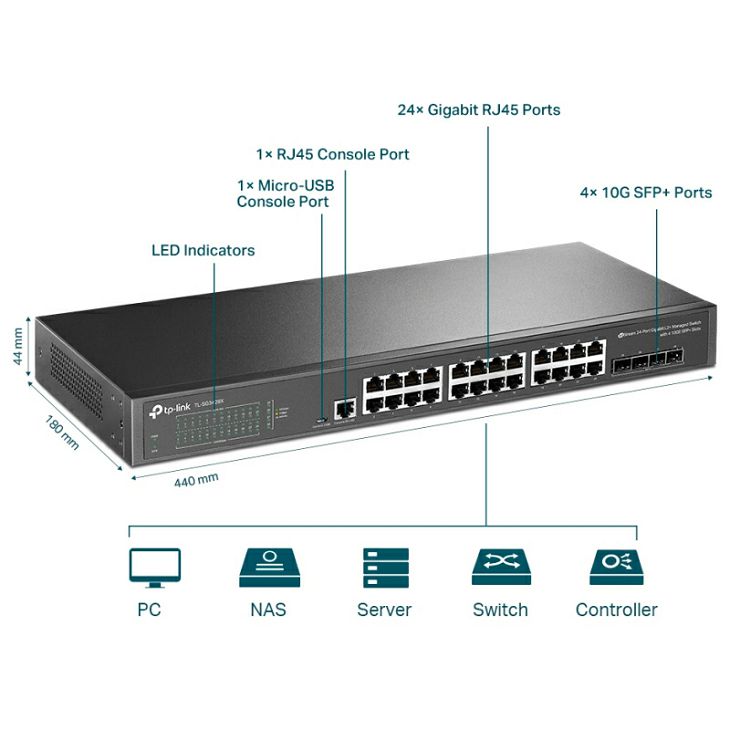

– 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity- Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring- Centralized Management: Cloud access and Omada app for ultra convenience and easy management- Static Routing: Helps route internal traffic for more efficient use of network resources- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilitiesSpecificationsHARDWARE FEATURES- Interface:* 24× 10/100/1000 Mbps RJ45 Ports* 4× 10G SFP+ Slots* 1× RJ45 Console Port* 1× Micro-USB Console Port- Fan Quantity: Fanless- Power Supply: 100-240V AC – 50/60 Hz- Dimensions (W×D×H): 440×180×44 mm- Mounting: Rack Mountable- Max Power Consumption: 23.6 W (110V/60Hz)- Max Heat Dissipation: 80.353 BTU/h (110 V/60 Hz)PERFORMANCE- Switching Capacity: 128 Gbps- Packet Forwarding Rate: 95.23 Mpps- MAC Address Table: 16 K- Jumbo Frame: 9 KBSOFTWARE FEATURES- Quality of Service:* 8 priority queues* 802.1p CoS/DSCP priority* Queue scheduling (SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR)* Bandwidth Control (Port/Flow based Rating Limiting)* Smoother Performance* Action for Flows (Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark)- L2 and L2+ Features:* Link Aggregation (static link aggregation, 802.3ad LACP, Up to 8 aggregation groups, containing 8 ports per group)* Spanning Tree Protocol (802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, Root Protect)* Loopback Detection (Port based, VLAN based)* Flow Control (802.3x Flow Control, HOL Blocking Prevention)* Mirroring (Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both)- L2 Multicast:* IGMP Snooping (IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication)* IGMP Authentication* MLD Snooping (MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast)* MVR* Multicast Filtering: 256 profiles and 16 entries per profile- VLAN:* VLAN Group (Max 4K VLAN Groups)* 802.1Q Tagged VLAN* MAC VLAN: 7 Entries* Protocol VLAN: Protocol Template 16, Protocol VLAN 16* Private VLAN* GVRP* VLAN VPN (QinQ) (Port-Based QinQ, Selective QinQ)* Voice VLAN- Access Control List:* Time-based ACL* MAC ACL (Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type)* IP ACL (Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority)* Combined ACL* Packet Content ACL* IPv6 ACL* Policy (Mirroring, Redirect, Rate Limit, QoS Remark)* ACL apply to Port/VLAN- Security:* IP-MAC-Port Binding (512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries)* IPv6-MAC-Port Binding (512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard: 100 Entries)* DoS Defend* Static/Dynamic Port Security (Up to 64 MAC addresses per port)* Broadcast/Multicast/Unicast Storm Control (kbps/ratio control mode)* 802.1X (Port base authentication, Mac base authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication andaccountability)* AAA (including TACACS+)* Port Isolation* Secure web management through HTTPS with SSLv3/TLS 1.2* Secure Command Line Interface (CLI) management with SSHv1/SSHv2* IP/Port/MAC based access control- IPv6:* IPv6 Dual IPv4/IPv6* Multicast Listener Discovery (MLD) Snooping* IPv6 ACL* IPv6 Interface* Static IPv6 Routing* IPv6 neighbor discovery (ND)* Path maximum transmission unit (MTU) discovery* Internet Control Message Protocol (ICMP) version 6* TCPv6/UDPv6* IPv6 applications (DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP)- L3 Features:* 16 IPv4/IPv6 Interfaces* Static Routing (48 static routes)* Static ARP (128 Static Entries)* Proxy ARP* Gratuitous ARP* DHCP Server* DHCP Relay (DHCP Interface Relay, DHCP VLAN Relay)* DHCP L2 Relay- Management:* Web-based GUI* Command Line Interface (CLI) through the console port, telnet* SNMP v1/v2c/v3 (Trap/Inform, RMON (1,2,3,9 groups))* SDM Template* DHCP/BOOTP Client* 802.1ab LLDP/LLDP-MED* DHCP AutoInstall* Dual Image, Dual Configuration* CPU Monitoring* Cable Diagnostics* EEE* Password Recovery* SNTP* System Log- Advanced Features:* Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller* Automatic Device Discovery* Batch Configuration* Batch Firmware Upgrading* Intelligent Network Monitoring* Abnormal Event Warnings* Unified Configuration* Reboot Schedule* ZTP (Zero-Touch Provisioning)- MIBs:* MIB II (RFC1213)* Interface MIB (RFC2233)* Ethernet Interface MIB (RFC1643)* Bridge MIB (RFC1493)* P/Q-Bridge MIB (RFC2674)* RMON MIB (RFC2819)* RMON2 MIB (RFC2021)* Radius Accounting Client MIB (RFC2620)* Radius Authentication Client MIB (RFC2618)* Remote Ping, Traceroute MIB (RFC2925)* Support TP-Link private MIBOTHERS- Certification: CE, FCC, RoHS- Package Contents: TL-SG3428X Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet- Environment:* Operating Temperature: 0C to 45C (32F to 113F)* Storage Temperature: -40C to 70C (-40F to 158F)* Operating Humidity: 10% – 90% RH non-condensing* Storage Humidity: 5% – 90% RH non-condensing
