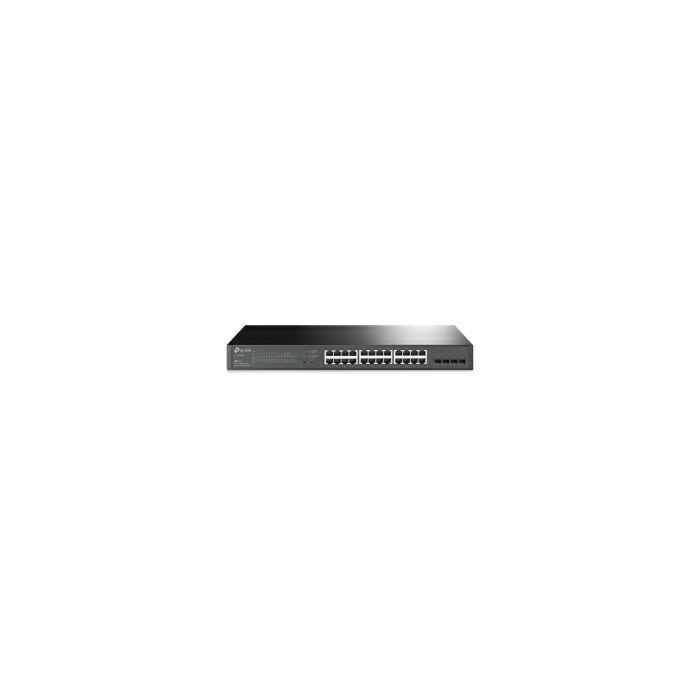

TP-Link JetStream 24-port Gigabit L2 PoE+ Smart preklopnik (Switch), 24×10/100/1000M RJ45 port, 4×Gbit SFP, 802.3at/af, 19″ 1U rack mount (250W)

– 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W- Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring- Centralized Management: Cloud access and Omada app for ultra convenience and easy management- Static Routing: Helps route internal traffic for more efficient use of network resources- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping- IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discoverySpecificationsHARDWARE FEATURES- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x- Interface:* 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)* 4× Gigabit SFP Slots- Network Media:* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)* 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)* 1000BASE-X: MMF, SMF- Fan Quantity: 2- PoE+ Ports(RJ45):* Standard: 802.3at/af compliant* PoE+ Ports: 24 Ports* Power Supply: 250 W- Dimensions (W×D×H): 440×220×44 mm- Mounting: Rack Mountable- Max Power Consumption:* 32.1 W (110 V/ 60 Hz with no PD connected)* 308.6 W (110 V/ 60 Hz with 250 W PD connected)- Max Heat Dissipation:* 109.53 BTU/h (with no PD connected)* 1052.94 BTU/h (with 250 W PD connected)PERFORMANCE- Bandwidth/Backplane: 56 Gbps- Packet Forwarding Rate: 41.7 Mpps- MAC Address Table: 8K- Packet Buffer Memory: 4.1 Mbit- Jumbo Frame: 9 kbSOFTWARE FEATURES- Quality of Service:* 802.1p CoS/DSCP priority* 8 priority queues* Priority Schedule Mode* SP (Strict Priority)* WRR (Weighted Round Robin)* Queue Weight Config* Bandwidth Control* Port/Flow based Rating Limit* Smoother Performance* Storm Control* Multiple Control Modes(kbps/ratio)* Broadcast/Multicast/Unknown-Unicast Control* L2 and L2+ Features:* 16 IP Interfaces (Support IPv4/IPv6 Interface)* Static Routing (32 IPv4/IPv6 Static Routes)* DHCP Server* DHCP Relay (DHCP Interface Relay, DHCP VLAN Relay)* DHCP L2 Relay* Static ARP* Proxy ARP* Gratuitous ARP* Link Aggregation (Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group)* Spanning Tree Protocol (802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter/Protect, Root Protect)* Loopback Detection* Flow Control (802.3x Flow Control)* Mirroring (Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both)* Device Link Detect Protocol (DLDP)* 802.1ab LLDP/ LLDP-MED- VLAN:* VLAN Group (Max. 4K VLAN Groups)* 802.1Q tag VLAN* MAC VLAN* Protocol VLAN* GVRP* Voice VLAN- Access Control List:* Support up to 230 entries* Time-Range (Time Slice, Week Time-Range, Absolute Time-Range, Holiday)* Time-based ACL* MAC ACL (Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type)* IP ACL (Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS)* IPv6 ACL* Combined ACL* Rule Operation (Permit/Deny)* Policy Action (Mirror, Rate Limit, Redirect, QoS Remark)* ACL Rules Binding (Port Binding, VLAN Binding)* Actions for flows (Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark)- Security:* AAA* 802.1X (Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability)* IP/IPv6-MAC Binding (512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection)* IP Source Guard (253 Entries, Source IP+Source MAC)* IPv6 Source Guard (183 Entries, Source IPv6 Address+Source MAC)* DoS Defend* Static/Dynamic/Permanent Port Security (Up to 64 MAC addresses per port)* Broadcast/Multicast/Unicast Storm Control (kbps/ratio control mode)* Port Isolation* Secure web management through HTTPS with SSLv3/TLS 1.2* Secure Command Line Interface (CLI) management with SSHv1/SSHv2* IP/Port/MAC based access control- IPv6:* IPv6 Static Routing and ACL* IPv6 Dual IPv4/IPv6* IPv6 Interface* Multicast Listener Discovery (MLD) Snooping* IPv6 neighbor discovery (ND)* Path maximum transmission unit (MTU) discovery* Internet Control Message Protocol (ICMP) version 6* TCPv6/UDPv6* IPv6 applications (DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP)MANAGEMENT- Omada App: Yes- Centralized Management:* Omada Cloud-Based Controller* Omada Hardware Controller (OC300)* Omada Hardware Controller (OC200)* Omada Software Controller- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)- Management Features:* Web-based GUI* Command Line Interface (CLI) through telnet* SNMPv1/v2c/v3* SNMP Trap/Inform* RMON (1,2,3,9 groups)* SDM Template* DHCP/BOOTP Client* Dual Image, Dual Configuration* CPU Monitoring* Cable Diagnostics* EEE* SNTP* System LogOTHERS- Certification: CE, FCC, RoHS- Package Contents:* TL-SG2428P* Power Cord* Installation Guide* Rackmount Kit* Rubber Feet- System Requirements: Microsoft Windows XP, Vista or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux- Environment:* Operating Temperature: 0C – 50C (32F – 122F);* Storage Temperature: -40C – 70C (-40F – 158F)* Operating Humidity: 10% – 90% RH non-condensing* Storage Humidity: 5% – 90% RH non-condensing
