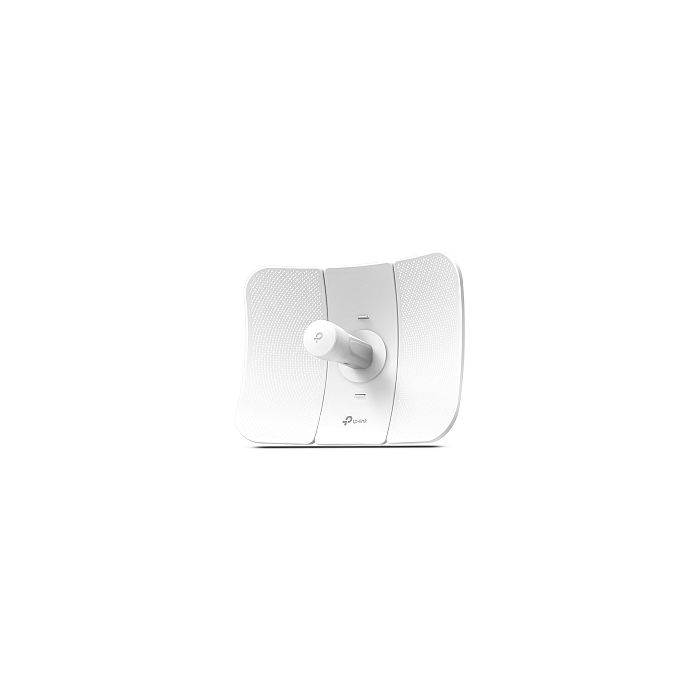

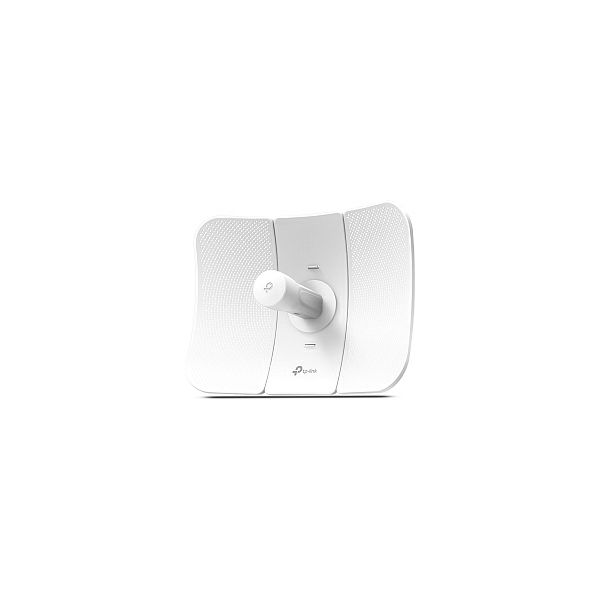

TP-Link bežična pristupna točka vanjska (AP) 300Mbps (5.0GHz), 802.11a/n, podrška za Pasive PoE, 1×LAN, IP65, Pharos MAXtream, 29dBi usmjeriva antena

Šifra: 30962

77,89

Cijena za plaćanje gotovinom prilikom dostave, internet bankarstvom ili Maestro i Visa karticom jednokratno.

74,00

Dostava od 4,99€ ili besplatna dostava za narudžbe iznad 99,00€

Brza dostava

u roku 2 - 3 dana

Plaćanje

do 24 rate bez kamata

Mogućnost povrata

u roku od 14 dana

Jamstvo

36 mjeseci

Opis

– Up to 300Mbps on 5GHz wireless data rates
– 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
– Excellent beam directivity, improved latency and noise cancellation

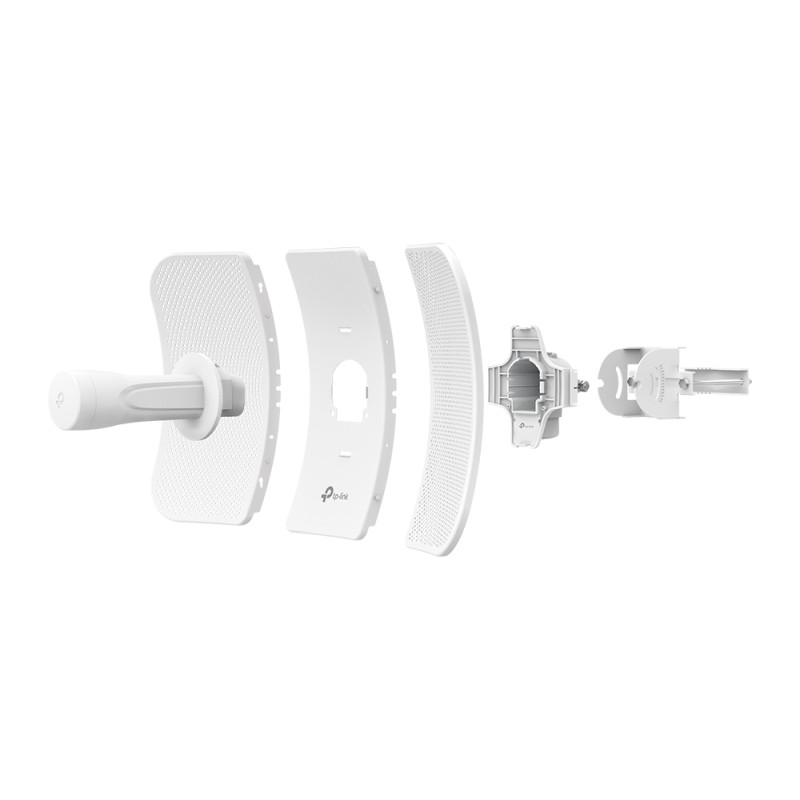

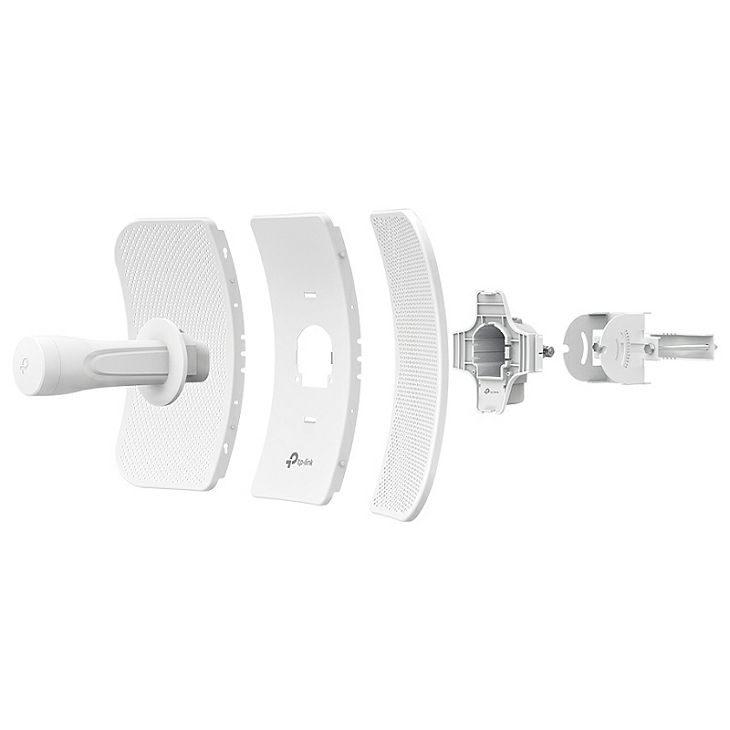

– Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
– Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
– TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
– Pharos Control gives administrators a free, centralized management system
– Passive PoE supports to allow flexible deployment and convenient installation

Specifications
HARDWARE FEATURES
– Processor: Qualcomm 560MHz CPU, MIPS 74Kc
– Memory: 64MB DDR2 RAM,8MB Flash
– Interface:
* 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
* 1 Reset Button
– Power Supply:
* Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
* Voltage range: 16-27VDC
– Dimensions (W×D×H): 366×280×207 mm (14.4″×11.0″×8.1″)
– Antenna Gain: 23dBi
– Antenna Beamwidth: 9° (Azimuth), 7° (Elevation)
– Protection:
* 15KV ESD Protection
* 6KV Lightning Protection
– Enclosure:
* Material: Outdoor PC stabilized plastic
* Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
– Wireless Standards: IEEE 802.11a/n
– Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
– Wireless Speeds:
* Up to 300Mbps (40MHz,Dynamic)
* Up to 144.4Mbps (20MHz,Dynamic)
* Up to 72.2Mbps (10MHz,Dynamic)
* Up to 36.1Mbps (5MHz,Dynamic)
– Frequency: 5.15 – 5.85GHz
– Transmit Power: Max. 25dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
– Network Configuration:
* WAN: Static/Dynamic/PPPoE/L2TP/PPTP
* LAN: Static/Dynamic/DHCP
* Forwarding: ALG/UPnP/Virtual Server/Port Trigger
* Security: SPI Firewall/ Ping Forbidden/DoS Protection
* Access Control
* Static Routing
* Bandwidth Control
* IP & MAC Binding
– Wireless Configurations:
* Pharos MAXtream TDMA Technology
* Selectable Channel Width: 5/10/20/40MHz
* Auto Channel Selection
* Transmit Power Control
* Dynamic Frequency Selection(DFS)
* WDS Enable/Disable
* Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
* 64/128/152-bit WEP Encryption
* SSID Broadcast Enable/Disable
* Multi-SSID with VLAN Tagging(AP Mode only)
* Distance/ACK Timeout Setting
* Wireless MAC Address Filter
* Wireless Advanced:
* Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
– Management:
* Discovery and Remote Management via Pharos Control application
* HTTP/HTTPS Web-based management
* System log
* SNMP Agent(v2c)
* Ping Watch Dog
* Dynamic DDNS
* SSH Server
– System Tools:
* Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
* Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
* Spectrum Analyzer
* Speed Test
* Ping
* Traceroute
– System-level Optimizations:
* Optimized IGMP Snooping/Proxy for multicast applications
* Hardware watch dog

POE ADAPTER FEATURES
– Dimensions (W×D×H): 85.8×43.9×29.7 mm
– Interfaces:
* 1 AC Jack with Earth Ground
* 1 10/100Mbps Shielded Ethernet Port (Power + Data)
* 1 10/100Mbps Shielded Ethernet Port (Data)
– Button: Remote Reset Button
– Power Status LEDs: Green
– Input: 100-240VAC, 50/60Hz
– Output:
* 24VDC, 0.6A Max
* +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
– Efficiency: >84.29%
– Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
– Certification: CE, FCC, IC, RoHS, IP65
– Package Contents: Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
– System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux
* Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended
– Environment:
* Operating Temperature: -40C – 70C (-40F – 158F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 95% non-condensing
