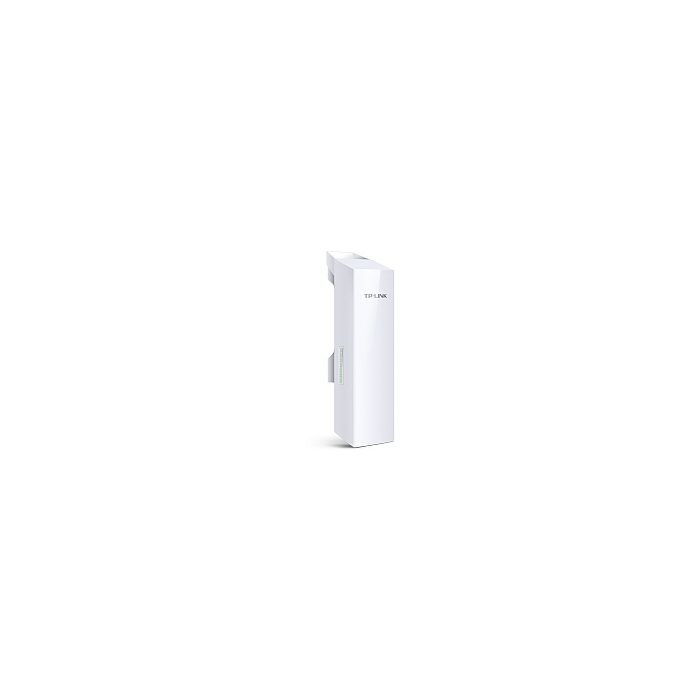

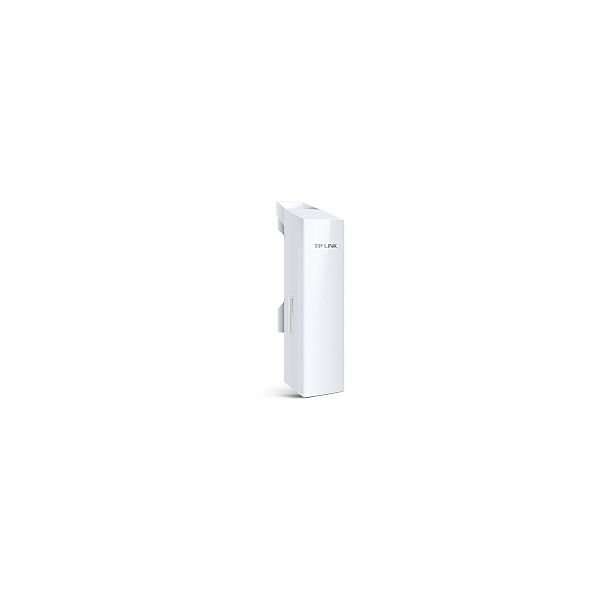

TP-Link bežična pristupna točka vanjska (AP) 300Mbps (2.4GHz), 802.11b/g/n, podrška za Pasive PoE, WISP Client Router, QCA, 2×9dBi usmjeriva antena

– Built-in 9dBi 2×2 dual-polarized directional MIMO antenna- Adjustable transmission power from 0 to 27dBm/500mw- System-level optimization for more than 5km long range wireless transmission- TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications- Centralized Management System – Pharos Control- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes- Outdoor stabilized enclosure with IPX5 waterproof certification- Dual Ethernet ports and grounding terminal integrated- 6000V Lightning Protection, 15KV ESD Protection- Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely- Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security- Selectable bandwidth of 5/10/20/40MHz- Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools- Easy antenna alignment with wireless signal quality indicators via Web interfaceSpecificationsHARDWARE FEATURES- Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc- Memory: 64MB DDR2 RAM, 8MB Flash- Interface:* 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)* 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)* 1 Grounding Terminal* 1 Reset Button- Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)- Voltage range: 16-27VDC- Dimensions (W×D×H): 224×79×60 mm- Power Consumption: 10.5 Watts Max** Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable- Antenna Type:* Built-in 9dBi 2×2 Dual-polarized Directional Antenna* Beam Width: 65° (H-Plane) / 35° (E-Plane)** Note: For more details, please refer to datasheet- Protection:* 15KV ESD Protection* 6000V Lightning Protection- Enclosure:* Outdoor ASA stabilized plastic material* IPX5 waterproof CertificationWIRELESS FEATURES- Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)- Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)- Wireless Speeds:* Up to 300Mbps (40MHz,Dynamic)* Up to 144.4Mbps (20MHz,Dynamic)* Up to 72.2Mbps (10MHz,Dynamic)* Up to 36.1Mbps (5MHz,Dynamic)- Frequency: 2.4~2.483GHz** Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used- Reception Sensitivity:802.11b* 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm802.11g* 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm802.11n* MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,* MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,* MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,* MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,* MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm- Transmission Power: 27dBm/500mw (Adjustable power by 1dBm)** Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is usedSOFTWARE FEATURES- Wireless Configurations:* Pharos MAXtream TDMA Technology* 802.11b/g/n Modes* Selectable Channel Width: 5/10/20/40MHz* Automatic Channel Selection* Transmission Power Control* Dynamic Frequency Selection (DFS)* WDS Enable/Disable* Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption* SSID Broadcast Enable/Disable* Multi-SSID with VLAN Tagging (AP mode only)* Distance/ACK Timeout Setting* Wireless MAC Address Filter* Wireless Advanced:* > Beacon Interval/RTS Threshold/Fragmentation* >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia- Management:* Discovery and Remote Management via Pharos Control application* HTTP/HTTPS Web-based management* System Log* SNMP Agent(v2c)* Ping Watch Dog* Dynamic DDNS* SSH Server- System Tools:* Wireless Signal Quality Indicators:* Signal Strength/Noise/Transmit CCQ/CPU/Memory* Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP* Spectrum Analyzer* Speed Test* Ping* Traceroute- System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dogPOE ADAPTER FEATURES- Interfaces:* 1 AC Jack with Earth Ground* 1 10/100Mbps Shielded Ethernet Port (Power + Data)* 1 10/100Mbps Shielded Ethernet Port (Data)- Efficiency: >80%- Button: Remote Reset Button- Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark- Power Status LEDs:* 0-0.8A: Green* 0.8A-1.0A: Red- Output:* 24VDC, 1.0A Max* +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)- Input Voltage: 100VA-240VAC @ 50Hz-60Hz- Dimensions(W×D×H): 110×57×33.5 mm- Input Current: 0.8A Max @ 100VAC- Input: 100-240VAC, 50/60Hz- Output Voltage: 24VDC(+4,5pins; -7,8pins)OTHERS- Certification: CE, FCC, RoHS, IPX5- Package Contents: Outdoor Wireless CPE, 24V 1A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux** Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended- Environment:* Operating Temperature: -30C – 70C (-22F – 158F)* Storage Temperature: -40C – 70C (-40F – 158F)* Operating Humidity: 10%-90% non-condensing* Storage Humidity: 5%-95% non-condensing
