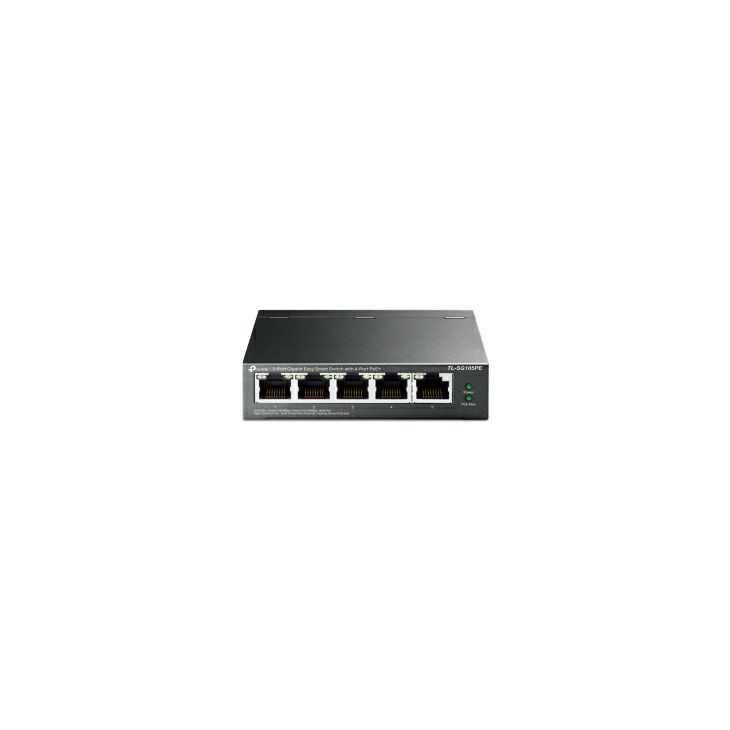

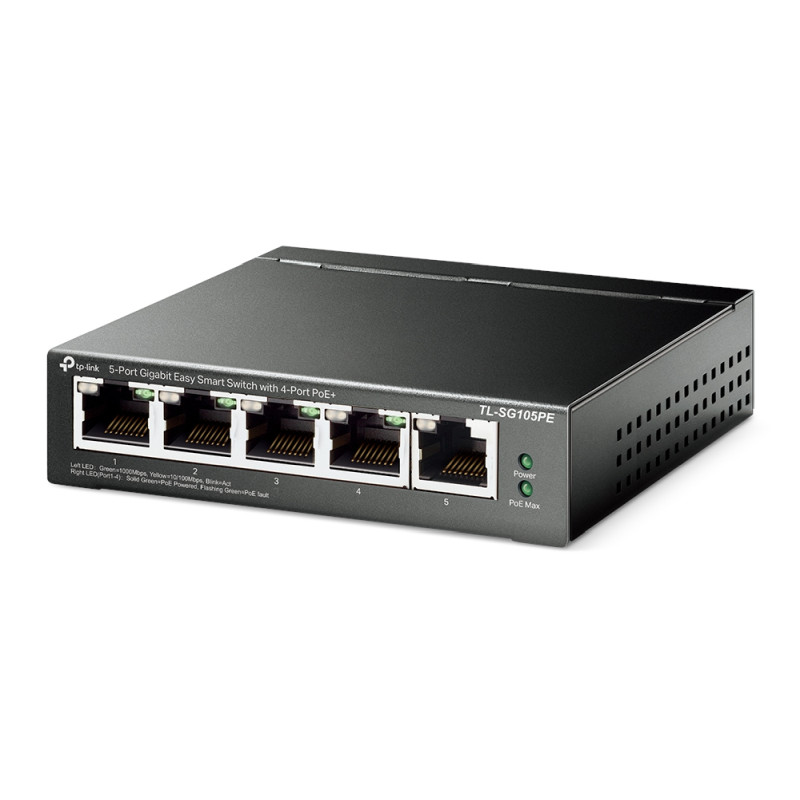

TP-Link 5-port Gigabit PoE Easy Smart preklopnik (Switch), 5×10/100/1000M RJ45, 4×PoE+, metalno kućište, 13″ (65W)

Šifra: 41163

69,34

Cijena za plaćanje gotovinom prilikom dostave, internet bankarstvom ili Maestro i Visa karticom jednokratno.

65,87

Nema na zalihi

Brza dostava

u roku 2 - 3 dana

Plaćanje

do 24 rate bez kamata

Mogućnost povrata

u roku od 14 dana

Jamstvo

60 mjeseci

Opis

Features
– Five 10/100/1000Mbps RJ45 ports

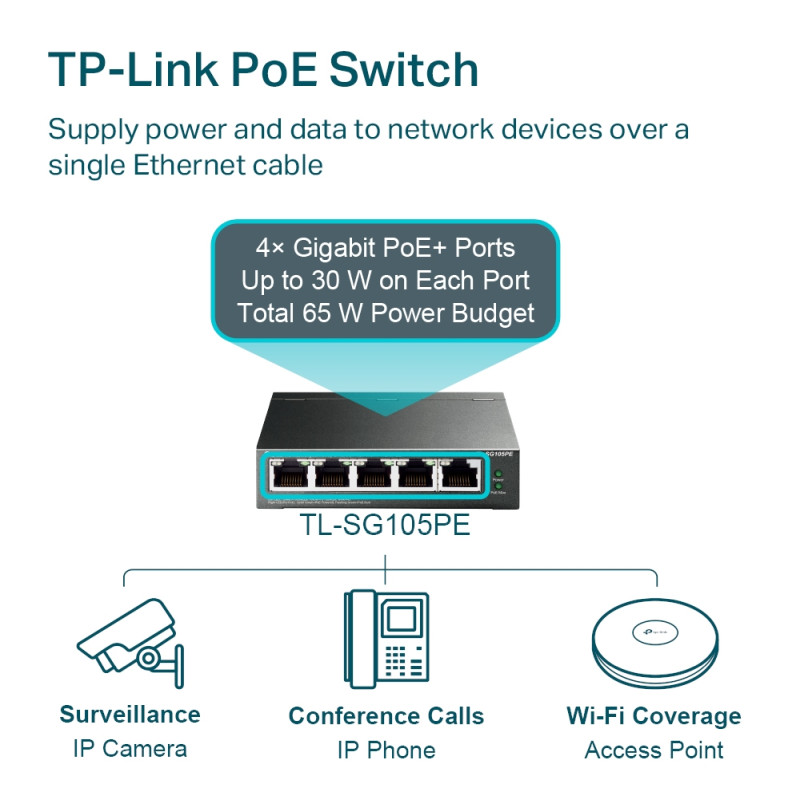

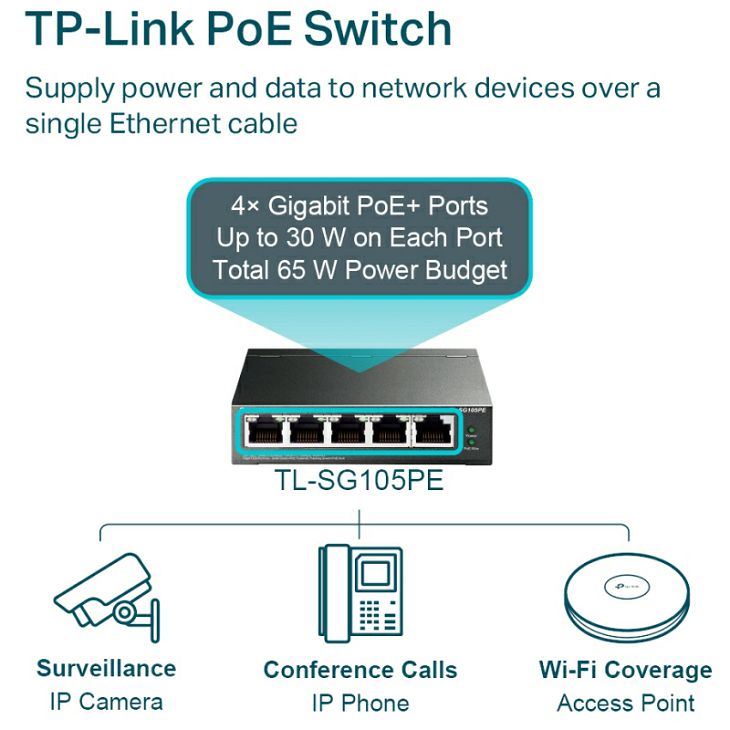

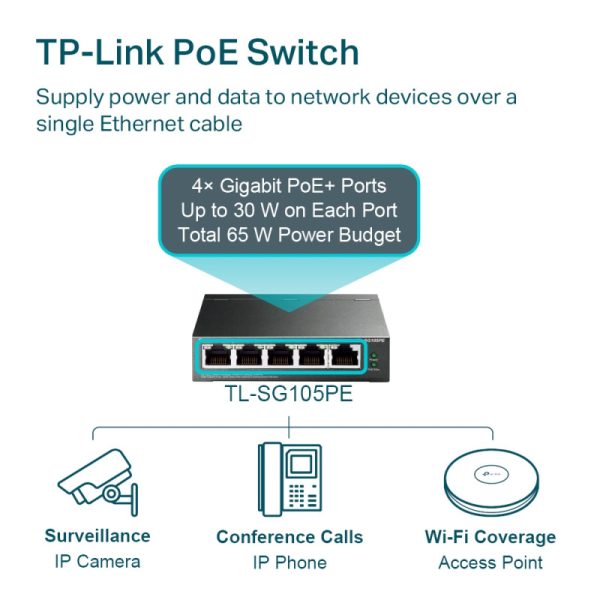

– Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
– Supports PoE power up to 65 W for all PoE ports
– Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

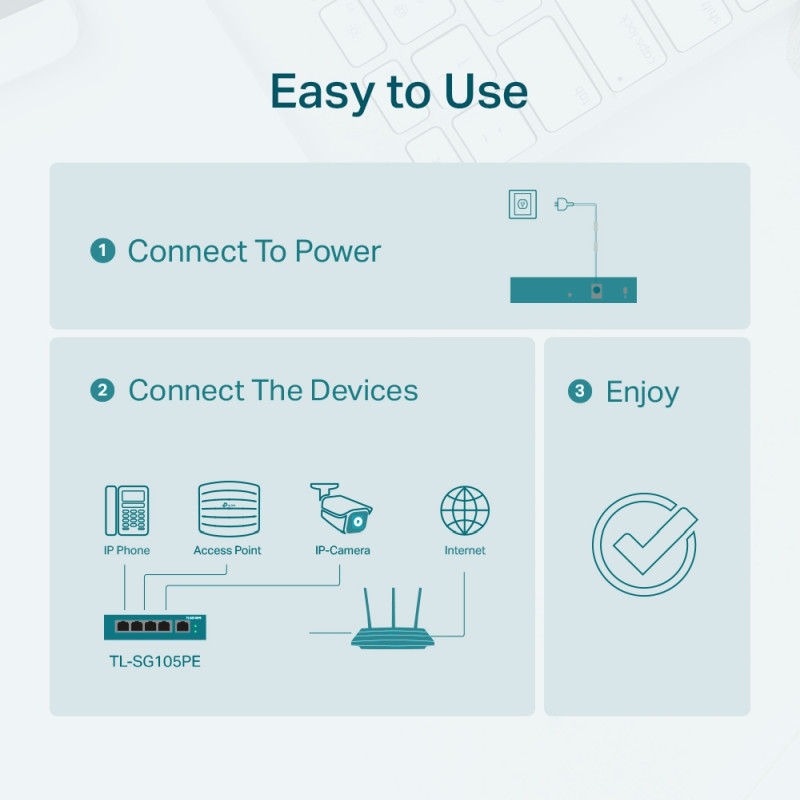

– Simple network set-up on top of plug-and-play connectivity
– Web-based user interface and Easy Smart Configuration Utility simplify configuration
– Fanless design lowers energy consumption and eliminates operating noise

Specifications
HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
– Interface: 5× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
– Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
– Fan Quantity: Fanless

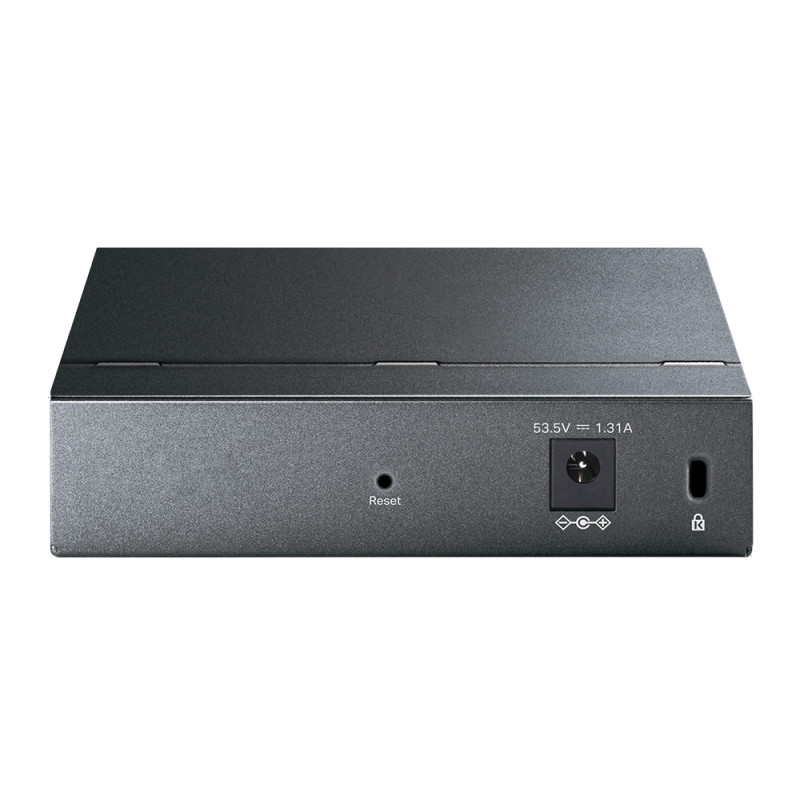

– Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
– PoE Ports (RJ45)
* Standard: 802.3 af/at compliant
* PoE Ports: Port 1- Port 4
* PoE Power Budget: 65 W
– Dimensions (W×D×H): 99.8×98×25 mm
– Max Power Consumption:
* 4.52 W (220V/50Hz with no PD connected)
* 75.16 W (220V/50Hz with 65 W PD connected)
– Max Heat Dissipation:
* 15.41 BTU/h (with no PD connected)
* 256.30 BTU/h (with 65 W PD connected)

PERFORMANCE
– Switching Capacity: 10 Gbps
– Packet Forwarding Rate: 7.44 Mpps
– MAC Address Table: 2 K
– Packet Buffer Memory: 1.5 Mb
– Jumbo Frame: 16 KB

SOFTWARE FEATURES
– Quality of Service:
* Support Port-Based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
– L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention

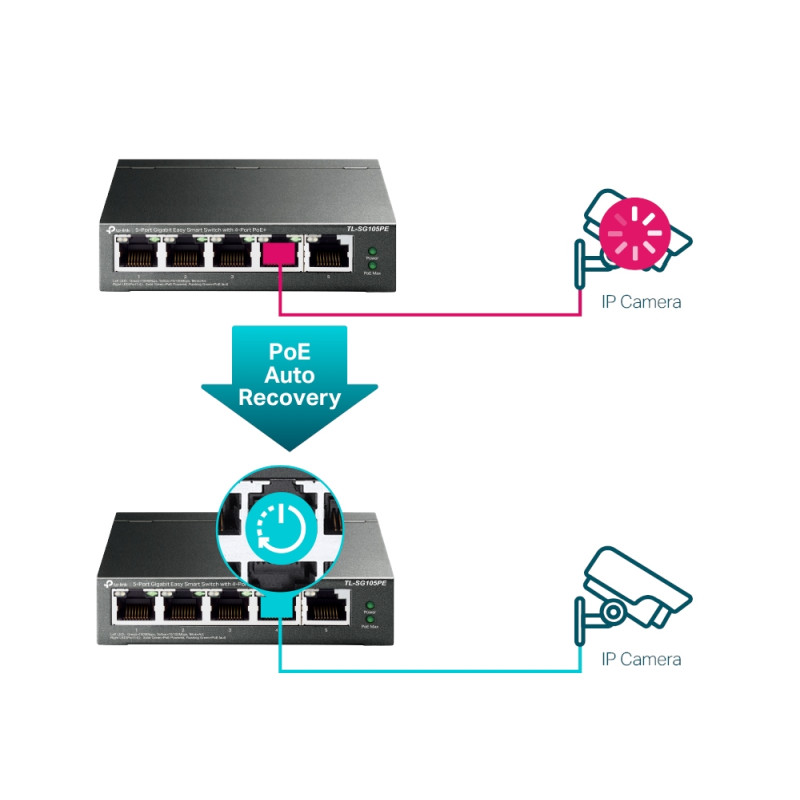

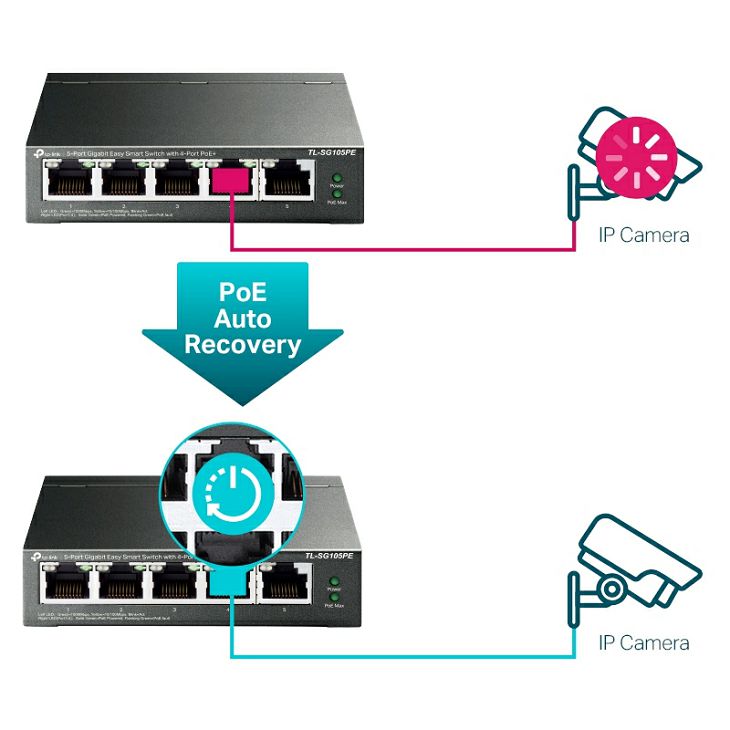

* PoE Auto Recovery
* Extend Mode
– VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
– Management: Web-based GUI, Easy Smart Configuration Utility
– Transmission Method: Store-And-Forward

OTHERS
– Certification: FCC, CE, RoHS
– Package Contents: TL-SG105PE, Power Adapter, Installation Guide, Rbber Feet
– System Requirements: Microsoft Windows for running Utility
– Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Storage Temperature: -40C to 70C (-40F to 158F)
* Operating Humidity: 10% – 90% RH non-condensing
* Storage Humidity: 5% – 95% RH non-condensing
