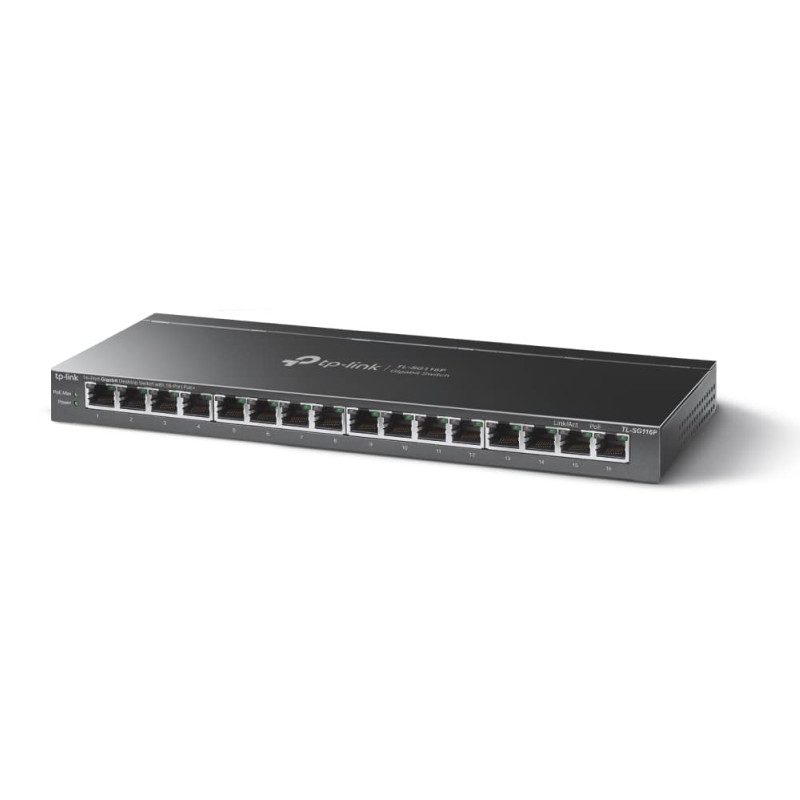

TP-Link 16-port Gigabit PoE+ preklopnik (Switch), 16×G-LAN PoE+, 802.3af/at (120W)
Šifra:
55112
176,14 €
Cijena za plaćanje gotovinom prilikom dostave, internet bankarstvom ili Maestro i Visa karticom jednokratno.
167,33 €
Brza dostava
u roku 2 - 3 dana
Plaćanje
do 24 rate bez kamata
Mogućnost povrata
u roku od 14 dana
Opis
– 16× 10/100/1000 Mbps RJ45 ports
– With 16 PoE+ ports, transfers data and power on one single cable
– Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
– Supports PoE Power up to 120 W for all PoE ports*
– Up to 250 m data and power transmission range under Extend Mode**
– Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
– Isolation Mode allows one-click client traffic separation for higher security and performance
– Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
– Plug and play with no configuration required
Specifications
HARDWARE FEATURES
– Interface
* 16× 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation
* AUTO MDI/MDIX
– Network Media
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
– Fan Quantity: Fanless
– External Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
– Packet Forwarding Rate: 23.8 Mpps
– PoE Ports (RJ45)
* Standard: 802.3 af/at compliant
* PoE Ports: Ports 1–16
* Power Supply: 120 W
– Mac Address Table: 8K, Auto-learning, Auto-aging
– Switching Capacity: 32 Gbps
– Dimensions ( W x D x H ): 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
– Max Power Consumption
* 11.72 W (220 V / 50 Hz no PD connected) /11.56 W (110 V / 60 Hz no PD connected)
* 142.51 W (220 V / 50 Hz with 120 W* PD connected) /144.28 W (110 V / 60 Hz with 120 W* PD connected)
– Max Heat Dissipation
* 39.85 BTU/h (220 V / 50 Hz no PD connected) /39.31 BTU/h (110 V / 60 Hz no PD connected)
* 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)
SOFTWARE FEATURES
– Advanced Features
* Compatible With IEEE 802.3af/at Compliant PDs
* Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
* Priority Mode Button (Ports 1–4)
* Isolation Mode Button (Ports 1–7 / 8-14)
* PoE Auto Recovery (Ports 1-16)
* Mac Address Auto-Learning And Auto-Aging
* IEEE 802.3x Flow Control
* 802.1p/DSCP QoS
* IGMP Snooping
– Transfer Method: Store-And-Forward
OTHERS
– Certification: FCC, CE, RoHS
– Package Contents
* TL-SG116P
* Power Adapter
* Installation Guide
– Environment
* Operating Temperature: 0–40 ? (32–104 ?);
* Storage Temperature: -40–70 ? (-40–158 ?)
* Operating Humidity: 10–90% RH non-condensing
* Storage Humidity: 5–90% RH non-condensing
