Mercusys Halo H60X(2-pack) AX1500 Whole Home Mesh WiFi 6, Dual-Band 300Mbps/1201Mbps (2.4GHz/5GHz), 802.11ax/ac/n/a 2.4 GHz – 802.11n/b/g 5 GHz, 5×G-LAN/WAN, Mercusys app

Dual Band WiFi 6 Speeds up to 1500 Mbps
– 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

Seamless Roaming with One Unified Network
– Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.

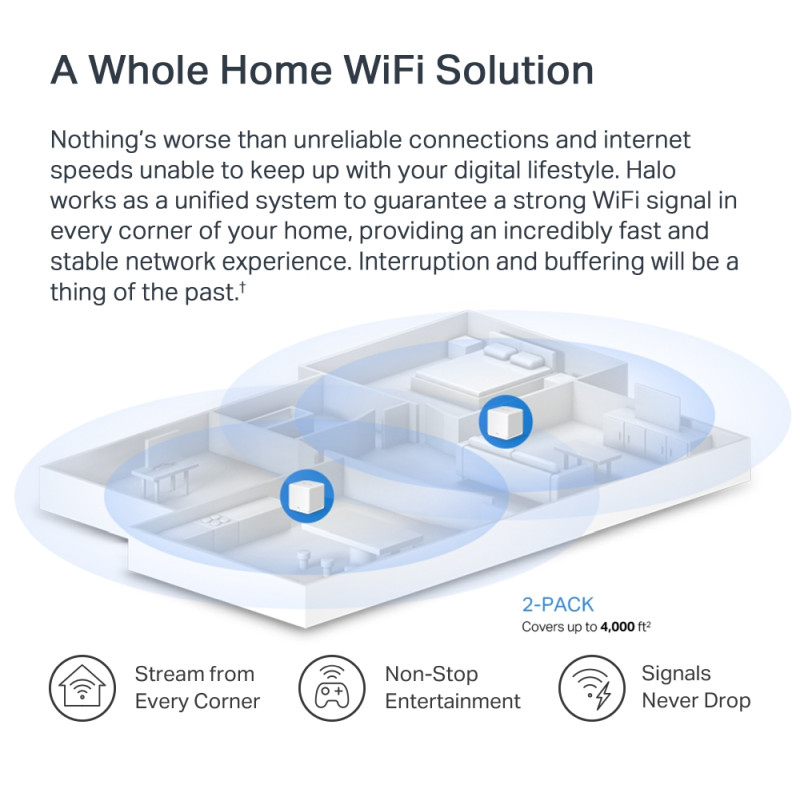

Whole Home Coverage
– Blanket up to 4,000 ft2 (350 m2) with high-speed WiFi, eliminating WiFi dead zones at your home.

Connect over 100 Devices
– Provide fast and stable connections over 100 devices.

Easily Manage Your Home Network
– Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.

Full Gigabit Ports
– Gigabit ports for lightning-fast wired connections.

Specifications
Wireless
– Wireless Standards: Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz
– WiFi Speeds: 1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz

Reception Sensitivity:
– 2.4GHz:
• 11g 6Mbps:-96.5dBm
• 11g 54Mbps:-78dBm
– 5GHz:
• 11a 6Mbps:-96dBm
• 11a 54Mbps:-78dBm
• 11ac VHT20 MCS8:-74.5dBm
• 11ac VHT40 MCS9:-70.5dBm
• 11ac VHT80 MCS9:-66.5dBm
• 11ax HE20 MCS11:-66dBm
• 11ax HE40 MCS11:-63dBm
• 11ax HE80 MCS11:-61dBm
– Transmission Power
• 2.4 GHz < 20dBm (EIRP)
• 5 GHz < 23dBm (EIRP)
– Wireless Security: WPA-PSK/WPA2-PSK/WPA3
– Mesh protocol: 802.11k/v/r
– HardwareDimensions: 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm)
– Interfaces:
• Halo H60XR: 3× Gigabit WAN/LAN Ports
• Halo H60XS: 2× Gigabit LAN Ports
– Button: Reset button

Software
– Operation Modes: Router, Access Point
– Quality of Service: WMM
– WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
– Management: Local Management, Remote Management, Multi-Managers
– DHCP: Server, Client
– Firewall Security: SPI Firewall
– Protocols: Supports IPv4 and IPv6
– Guest Network
• 2.4 GHz Guest Network,
• 5 GHz Guest Network

Others
Package Contents
– 1× Halo H60XR Unit+ 1× Halo H60XS Unit
– 1× RJ45 Ethernet Cable
– 2× Power Adapters
– Quick Installation Guide

Environment
– Operating Temperature: 0 C~40 C (32 F~104 F)
– Operating Humidity: 10% 90% Non-Condensing
– Storage Humidity: 5% 90% Non-Condensing
