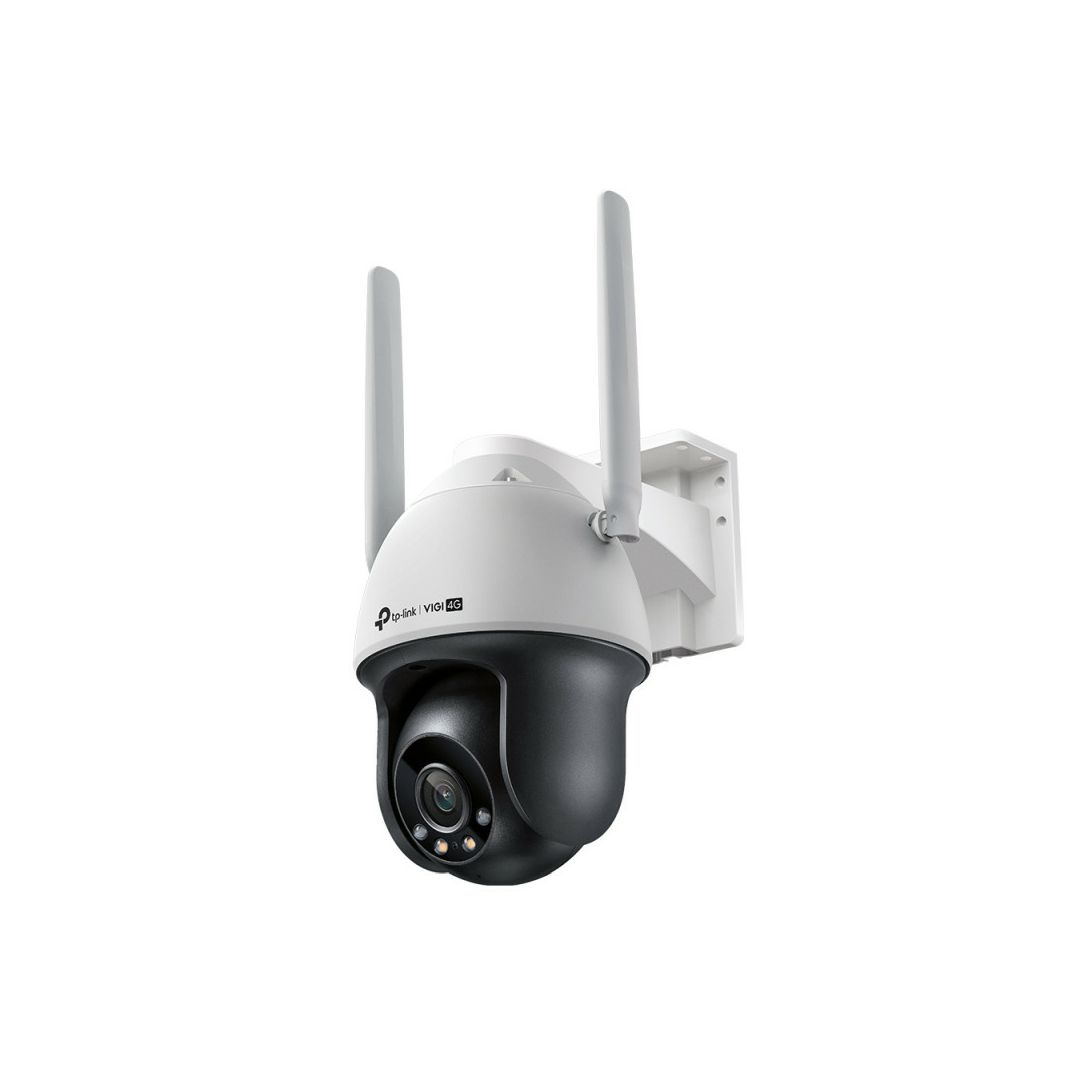

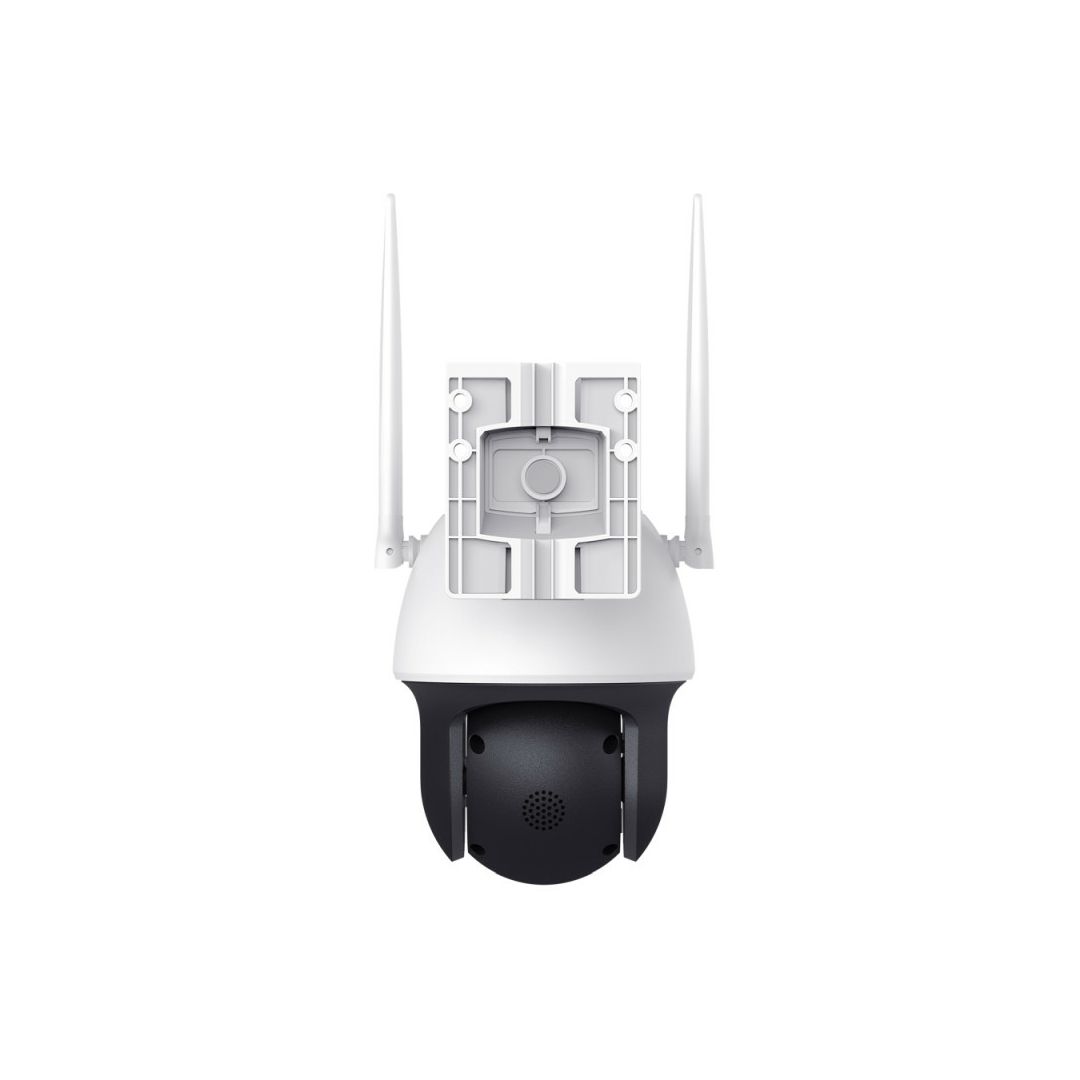

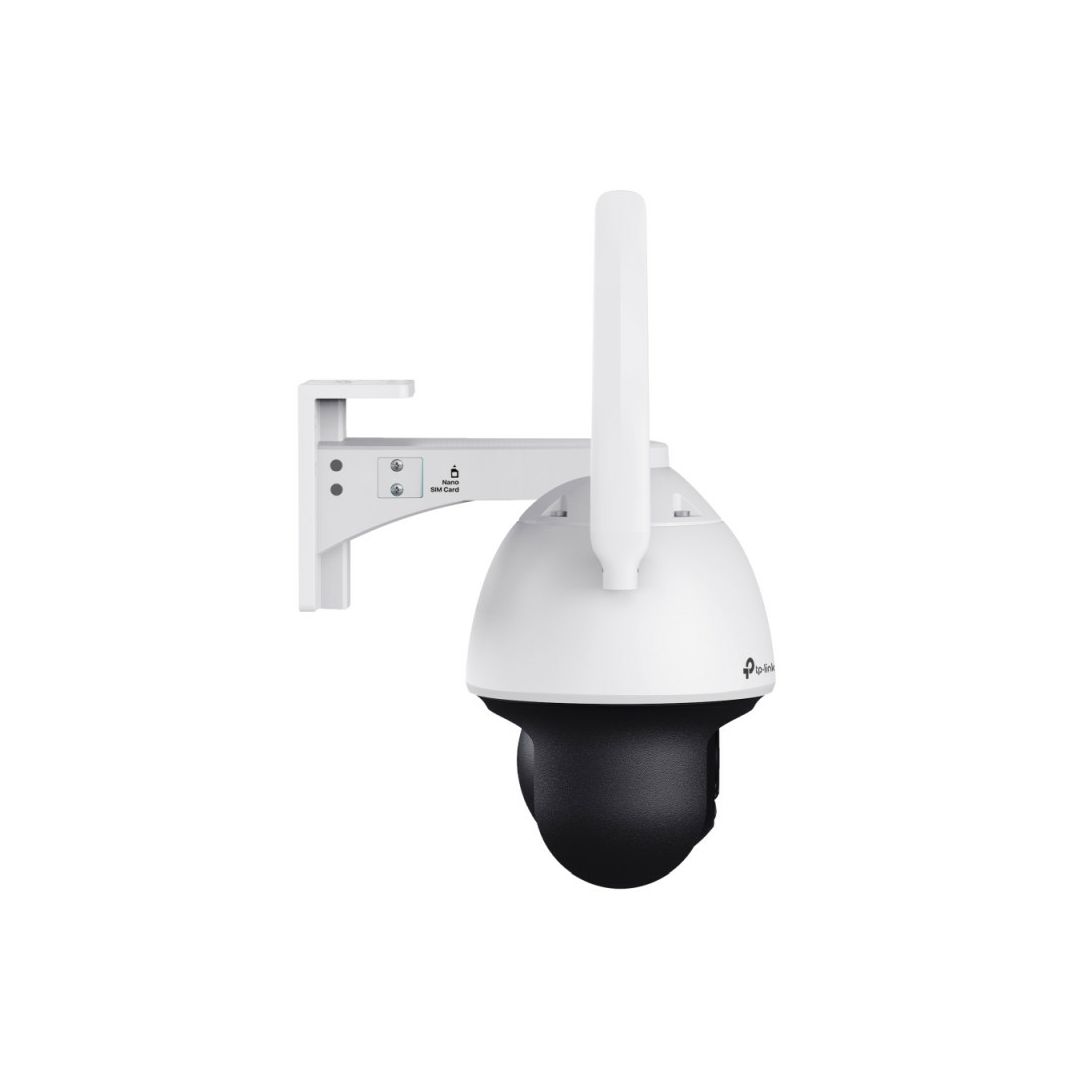

TP-Link VIGI 4MP Outdoor Full-Color 4G Pan/Tilt kamera, Max res. 2560×1440, 4MP, H.265+, 24h Full-Color, 2-way audio, IP66

4MP Super-High Definition:
– The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.

24h Full-Color:
– Experience clear, vibrant 24-hour monitoring, even in total darkness.

4G Mobile Networking:
– Enjoy hassle-free installation and simple monitoring in places where the internet is not available.

360° Monitoring:
– Cover every corner and eliminate blind spots.

Human & Vehicle Classification:
– Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection:
– Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.

Automatic Tracking:
– Automatically tracks persons or vehicles of interest and provides seamless and longer video.

Active Defense:
– Warn potential intruders instantly with sound and light when abnormal events.

Two-Way Audio:
– With voice intercom support, carry two-way conversations while watching your feed from anywhere.

H.265+:
– Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

IP66 Waterproof:
– Reliable IP66 for stable outdoor performance.

Remote Management:
– Take full control over your security anytime and anywhere on the VIGI app or PC client.

Onboard Storage:
– Support on-board storage up to 256 GB (SD card slot).

Specifications
CAMERA
– Image Sensor: 1/3.06” Progressive Scan CMOS
– Shutter Speed: 1/3 to 1/10000 s
– Slow Shutter: Yes
– Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
– Day/Night Mechanism: IR Cut Filter
– Day/Night Switch: Unified/ Scheduled/ Auto

LENS
– Type: Fixed Focal Lens
– Focal Length: 4 mm
– Aperture: F1.6
– FOV: Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
– Lens Mount: M12*0.5
– DORI Distance: Detect: 80 m (262 ft)
– Observe: 33 m (109 ft)
– Recognize: 16 m (52 ft)
– Identify: 8 m (26 ft)

PTZ
– Pan/tilt Range: Pan: 0° to 348°, Tilt: 0° to 120°
– Pan/tilt Speed
• Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
• Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
– Manual Control Speed: Configurable from 8° to 35°/s
– Presets: 300
– Patrol Scan: 8 patrols, up to 8 presets for each patrol
– Power-off Memory: Yes. Auto restore to previous PTZ and lens status after power failure
– Park Action: Yes. Preset; Patrol Scan
– 3D Positioning: Yes

Angle Adjustment (Manual)
– Range
• Pan: 0° to 348°
• Tilt: 0° to 120°

ILLUMINATOR
– IR LED
• Quantity: 2
• Range: 30m;
• Wavelength: 850nm
– White LED
• Quantity: 2
• Range: 30m
– Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

VIDEO
– Max. Resolution 2560 X 1440
– Main Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
– Sub-Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 640×480, 352×288, 320×240
– Bit Rate Control: CBR, VBR
– Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
– H.264 Type: Main Profile/High Profile
– H.264+: Main Stream Supported
– H.265 Type: Main Profile
– H.265+: Main Stream Supported
– Video Bit Rate
• Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

– Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
– Image Enhancement: BLC/3D DNR/HLC/SmartIR
– Wide Dynamic Range: DWDR
– SNR: ? 52 dB
– Image Parameters Switch: Yes
– Privacy Mask: Up to 4 Masks
– ROI: 1 Region
– OSD Setting: Yes

AUDIO
– Audio Communication: Two-Way Audio
– Audio Input: Yes
– Audio Output: Yes
– Audio Compression: Yes
– Audio Sampling Rate: 8KHz
– Environment Noise Filtering: Yes
– Audio Bit Rate: 64 Kbps(G.711 alaw)

NETWORK
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– ONVIF: Yes
– API: ONVIF
– Simultaneous Live View: 2 Main Streams & 2 Sub-Streams
– Client: VIGI App, VIGI Security Manager, Web UI
– Web Browser:
• Google Chrome 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
– Cloud: Yes
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G
– Standard: LTE-TDD/LTE-FDD/WCDMA
– SIM Type: Nano SIM
– Category: 4
– Frequency: LTE-FDD: B 1/3/5/7/8/20/28
– LTE-TDD: B 38/40/41
– WCDMA: B 1/5/8

ALARM AND EVENT MANAGEMENT
– Smart Event
• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• People Detection
• Vehicle Detection
– Basic Event
• Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
– Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
– Linkage Method: N/A
– Output Notification: Message Push

INTERFACES
– Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
– Alarm: N/A
– Reset Button: Yes
– Power: DC Power Port
– On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

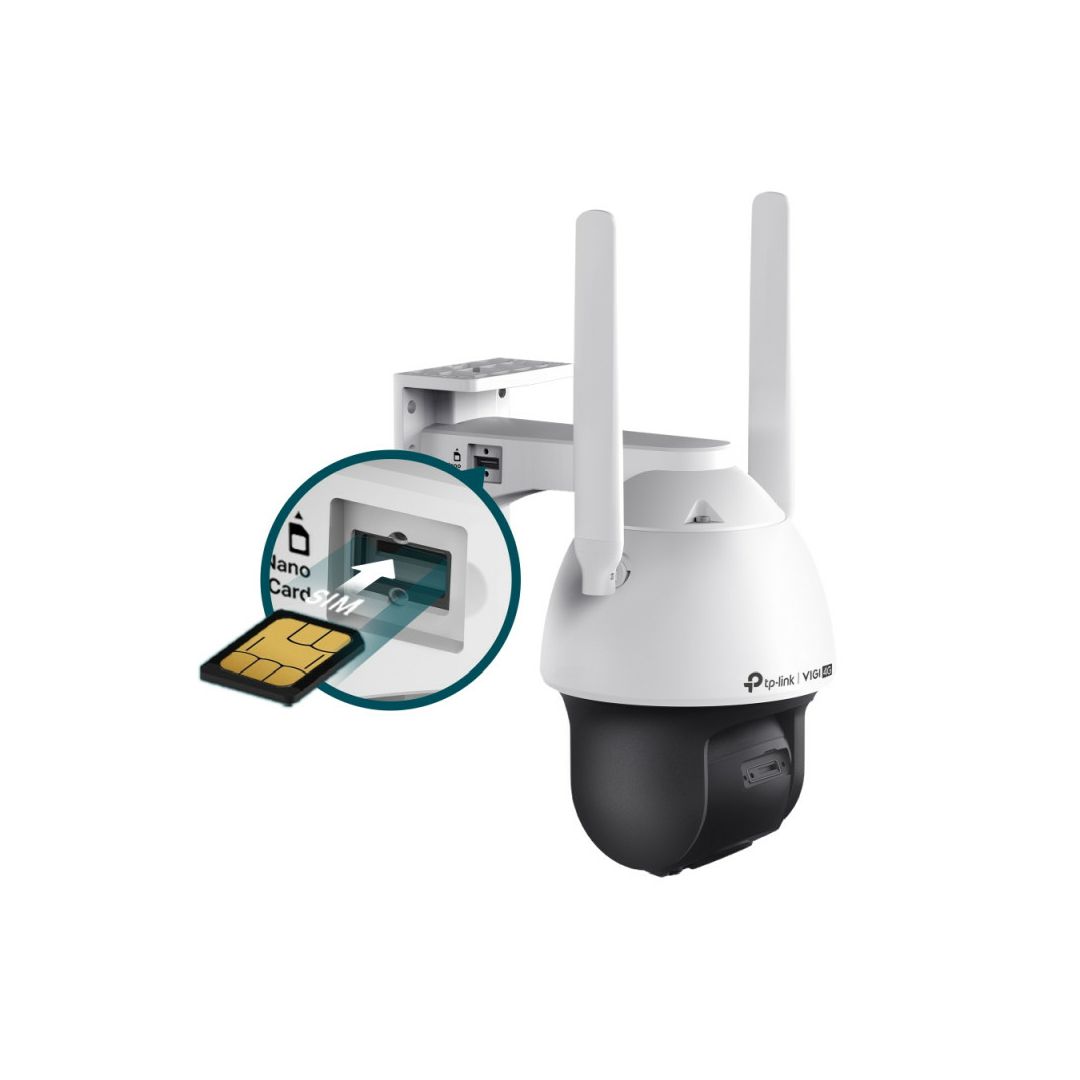

– Built-in Nano-SIM Card Slot: Yes
– Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
– Built-in Speaker: Yes
– Audio: N/A

GENERAL
– Operating Temperature: -30–60 °C
– Storage Temperature: -40–60 °C
– Operating Humidity: 95% or Less (Non-Condensing)
– Storage Humidity: 95% or Less (Non-Condensing)
– Package Contents
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
– Material: Plastic
– Net Weight: 0.69 Kg
– Gross Weight: 1.16 Kg
– Power Supply: 12V DC/1A, 5.5mm Coaxial Power Plug
– Antenna
• Quantity: 2
• Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna
• Gain:
• Ant1:0.84dBi 690~960MHz, 2.85dBi 1710~2690MHz
• Ant2:0.74dBi 690~960MHz, 3.06dBi 1710~2690MHz
– Protection: IP66
– Product Dimensions (L x W x H): 120 × 182 × 201 mm (excluding antennas)
– Certifications: CE, RCM, BSMI, RoHS, NCC
