TP-Link SafeStream Gigabit širokopojasni VPN usmjerivač (Router), 1×G-WAN/1×G-LAN + 3×G-WAN/LAN

Features

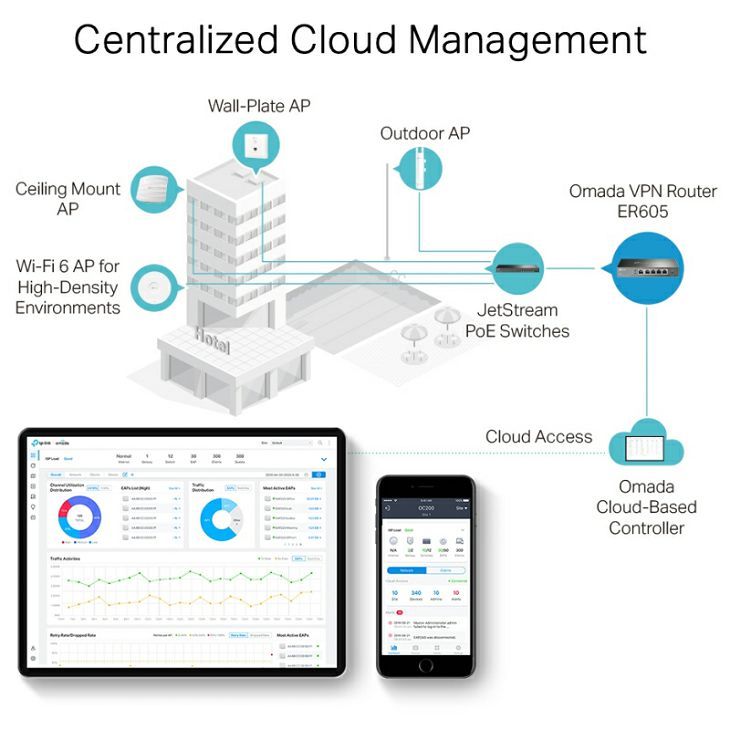

– Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
– Centralized Management: Cloud access and Omada app for convenience and easy management.
– Five Gigabit Ports: High-speed wired connectivity.

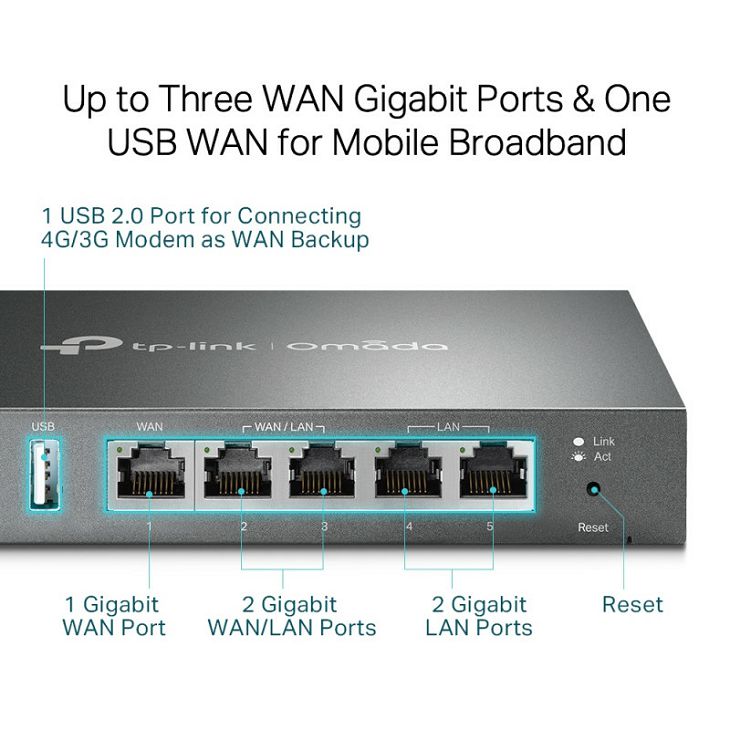

– Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
– One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
– Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.

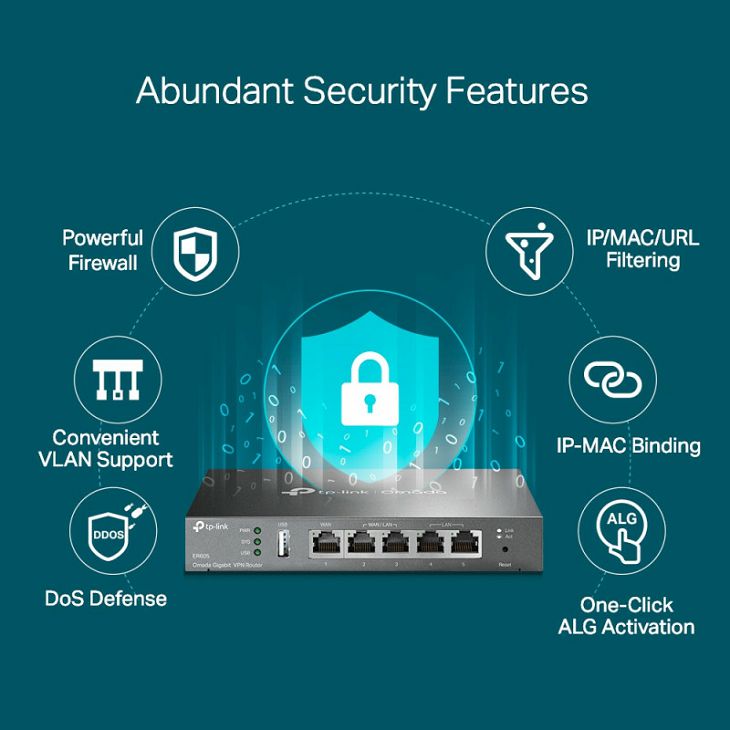

– Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

Specification
SECURITY
– Access Control: Source/Destination IP Based Access Control
– Filtering
• WEB Group Filtering§
• URL Filtering
• Web Security§
– ARP Inspection
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
– Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES
– Standards and Protocols
• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
– Interface
• 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)
– Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100? STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100? STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
– Fan Quantity: Fanless
– Button: Reset Button
– Power Supply: External 12V/1A DC Adapter
– PoE Budget: –
– Flash. 128 MB NAND
– DRAM: 256 MB DDR
– LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
– Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
– Protection: 4 kV surge protection
– Enclosure: Steel
– Mounting: Desktop/Wall-mount
– Max Power Consumption: 7.94 W

PERFORMANCE
– Concurrent Session: 150,000
– New Sessions /Second: 2,600
– NAT (Static IP)
• Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bi-Directional: 1808.29 Mbps
– NAT(DHCP)
• Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bi-Directional: 1808.11 Mbps
– NAT(PPPoE)
• Upload: 940.44Mbps
• Download: 940.52 Mbps
• Bi-Directional: 1804.27 Mbps
– NAT (L2TP)
• Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bi-Directional: 931.96 Mbps
– NAT (PPTP)
• Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bi-Directional: 999.54 Mbps
– 64 Byte Packet Forwarding Rate
• Upload/Download: 1,402,238 pps
• Bi-Directional: 1,681,548 pps
– IPsec VPN Throughput
• ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mbps
• ESP-SHA2-AES256: 248.04 Mbps
– OpenVPN
• 21.70 Mbps
– L2TP VPN Throughput
• Unencrypted: 864.65 Mbps
• Encrypted: 47.11 Mbps
– PPTP VPN Throughput
• Unencrypted: 703.20 Mbps
• Encrypted: 76.65 Mbps
– SSL VPN Throughput: –
– 66 Byte Packet forwarding rate
• Upload/Download: 954.50 Mbps
• Bi-Directional: 1130.00 Mbps
– 1,518 Byte Packet forwarding rate
• Upload/Download: 997.50 Mbps
• Bi-Directional: 1965.00 Mbps

BASIC FUNCTIONS
– WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port‡
– MAC Clone: Modify WAN/LAN MAC Address†
– DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*
– IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
– VLAN: 802.1Q VLAN
– IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
– ACL: IP/Port/Protocol/Domain Name Filtering
– Advanced Routing
• Static Routing
• Policy Routing
– Bandwidth Control: IP-based Bandwidth Control
– Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
– NAT
• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
– Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
– Session Limit: IP-based Session Limit

VPN
– IPsec VPN
• 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
– PPTP VPN
• PPTP VPN Server
• 10 PPTP VPN Clients**
• 16 Tunnels
• PPTP with MPPE Encryption
– L2TP VPN
• L2TP VPN Server
• 10 L2TP VPN Clients**
• 16 Tunnels
• L2TP over IPSec
– OpenVPN
• OpenVPN Server*
• 10 OpenVPN Clients*?
• 16 OpenVPN Tunnels*

AUTHENTICATION
– Web Authentication
• No Authentication
• Simple Password*
• Hotspot(Local User / Voucher* / SMS* / Radius*)
• External Radius Sever
• External Portal Sever*
• Facebook*

MANAGEMENT
– Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
– Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
– Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
– Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
– Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support
– Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
– Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS
Certification: CE, FCC, RoHS
– Package Contents
• Gigabti VPN Router ER605
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
– System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
– Environment
• Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
