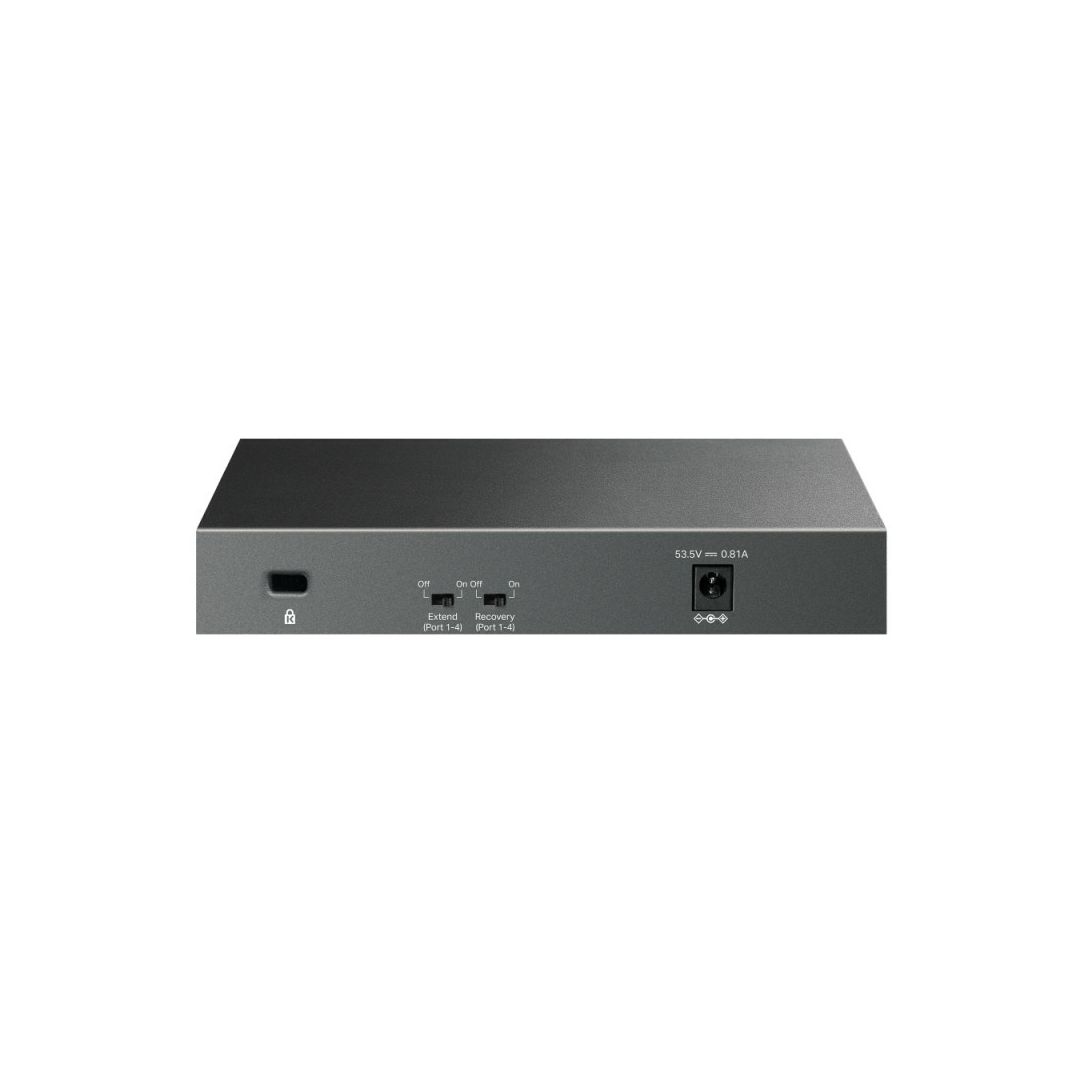

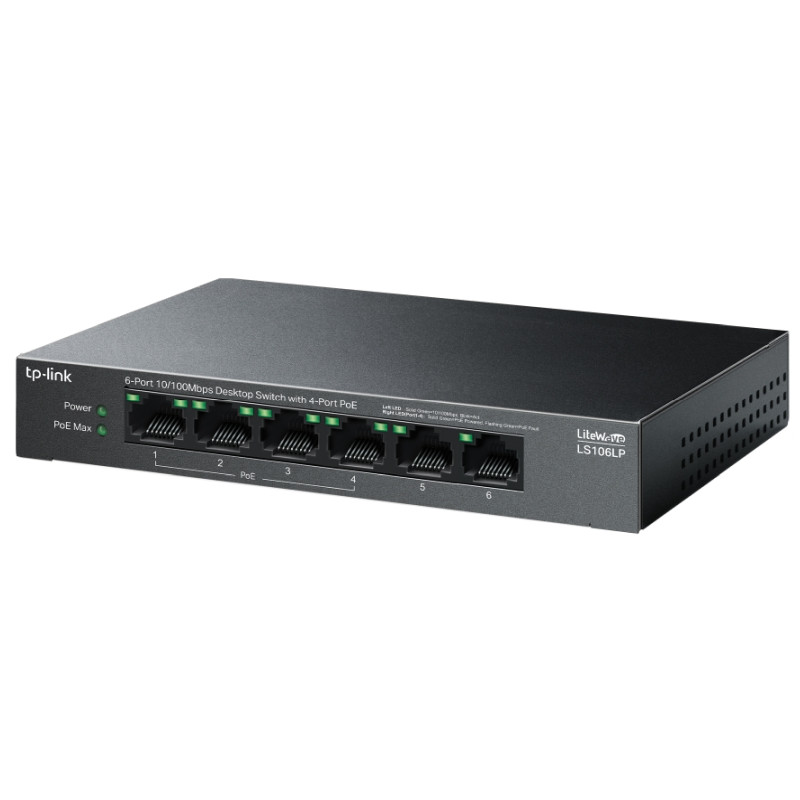

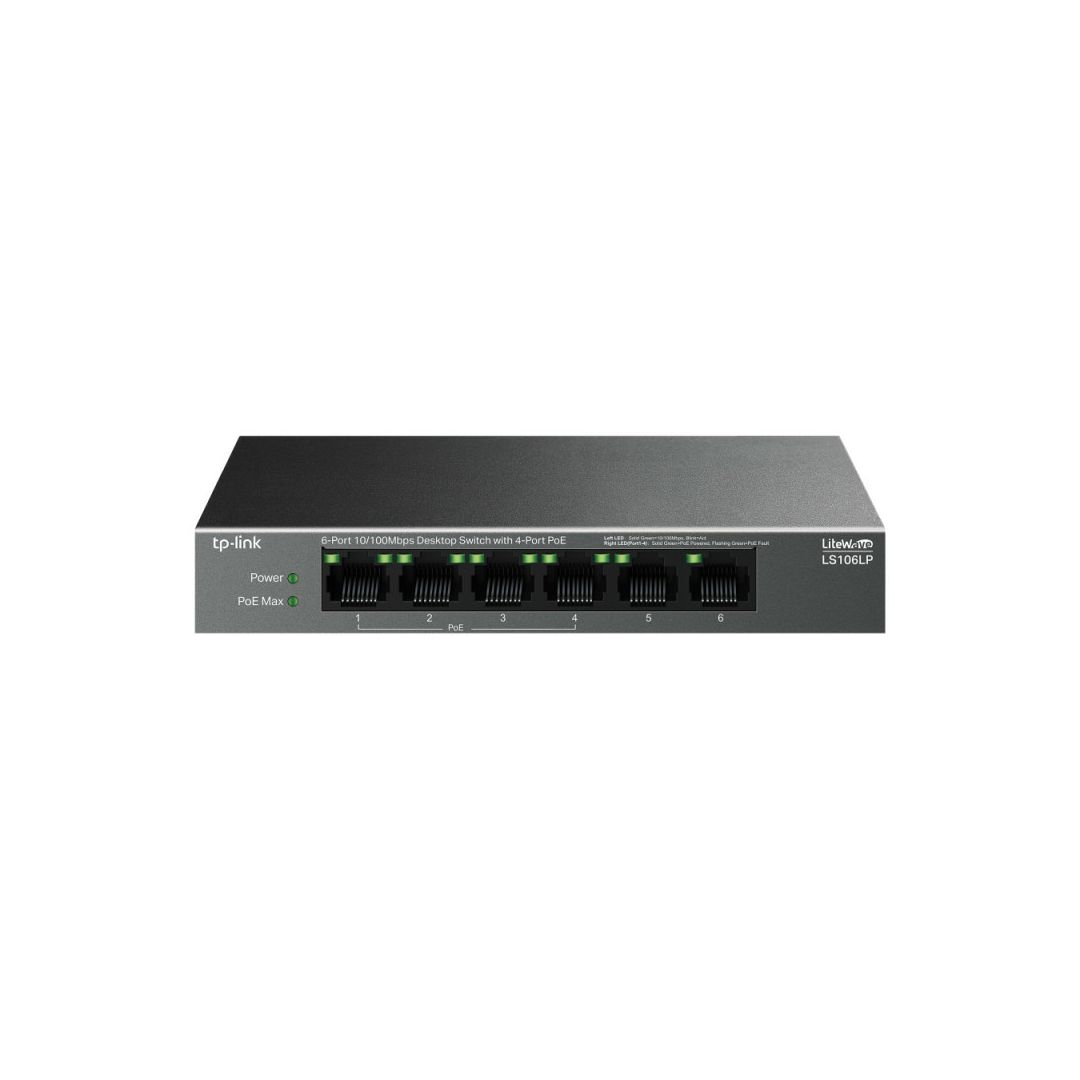

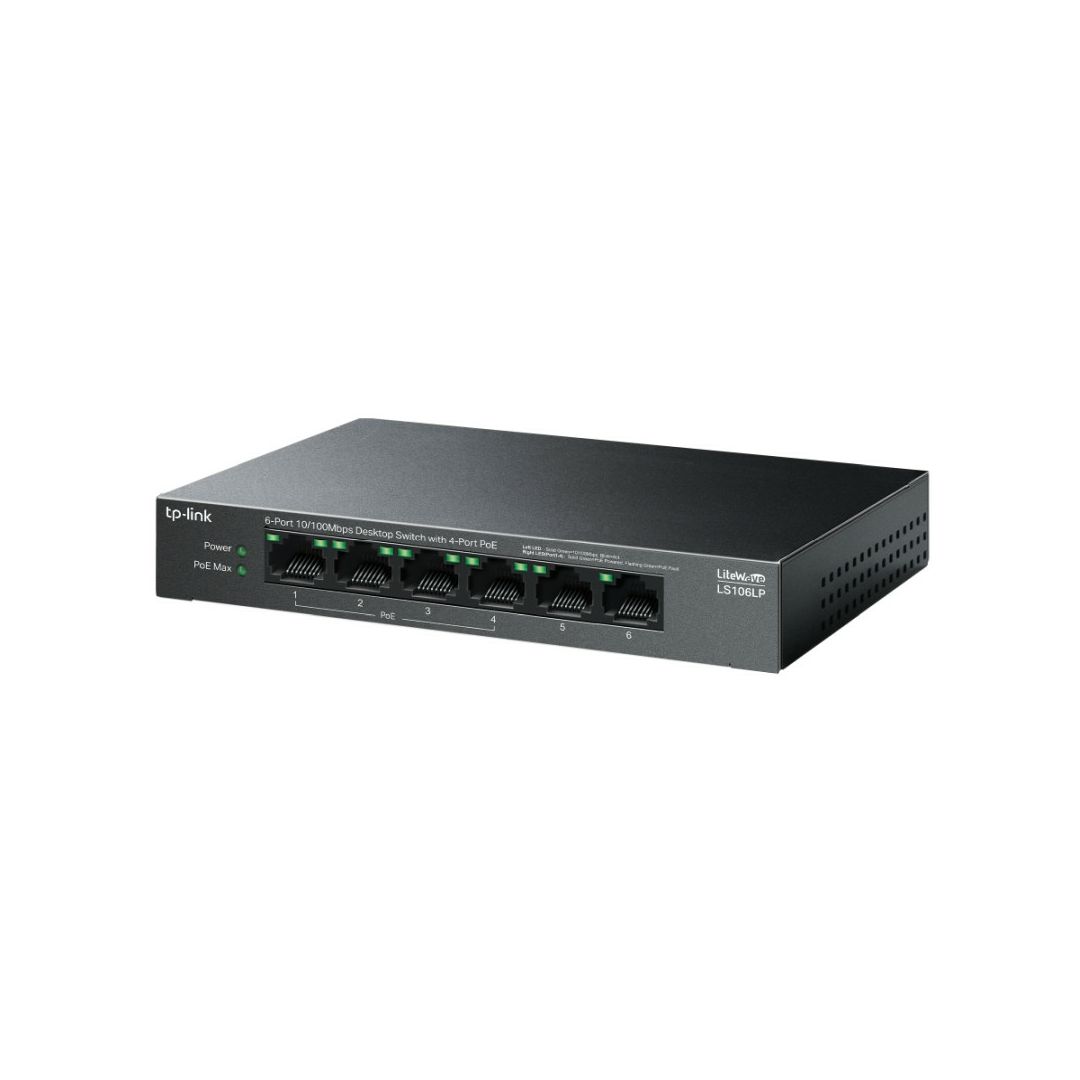

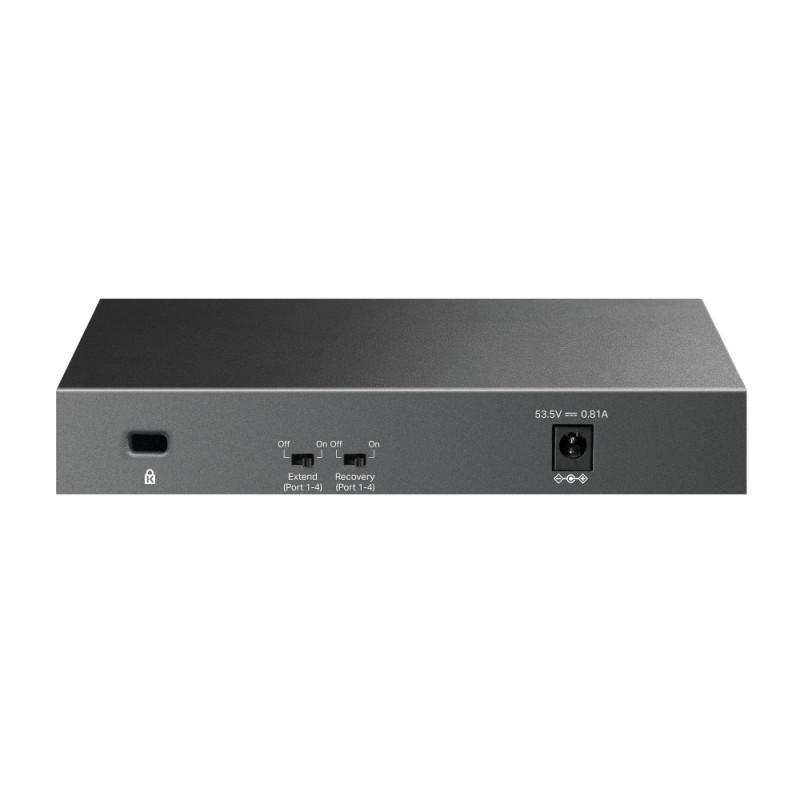

TP-Link 6-Port 10/100Mbps Desktop preklopnik (Switch), 6×10/100 Mbps RJ45 Ports (4×10/100 Mbps 802.3af PoE Ports) 802.3af, 41W PoE Power, metalno kučište
Šifra:
58643
36,58 €
Cijena za plaćanje gotovinom prilikom dostave, internet bankarstvom ili Maestro i Visa karticom jednokratno.
34,75 €
Brza dostava
u roku 2 - 3 dana
Plaćanje
do 24 rate bez kamata
Mogućnost povrata
u roku od 14 dana
Opis
41 W PoE Budget:
– Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission:
– With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery:
– Automatically reboots your dropped or unresponsive PoE-powered devices.
Plug and Play:
– Simply plug and play for instant connectivity with no configuration required.
Silent Operation:
– Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design:
– Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Specifications
HARDWARE FEATURES
– Interface
• 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)
• AUTO Negotiation
• AUTO MDI/MDIX
– Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
– Fan Quantity: Fanless
– Installation
• Desktop
• Wall Mounting
– Power Supply: External Power Adapter (Output: 53.5VDC / 0.81A)
– PoE Ports (RJ45)
• Standard: 802.3 af compliant
• PoE Ports: Ports 1–4, up to 15.4 W PoE output per port
• Power Supply: 41 W
– LED Indicator
• Power
• Link/Act
• PoE Status
• PoE MAX
– Dimensions ( W x D x H ): 6.2×4.0×1.0 in (158×101×25 mm)
– Max Power Consumption
• 2.53 W (220 V/50 Hz no PD connected)
• 47.76 W (220 V/50 Hz with 41 W PD connected)
– Max Heat Dissipation
• 8.61 BTU/h (220 V/50 Hz no PD connected)
• 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)
PERFORMANCE
– Switching Capacity: 1.2 Gbps
– Packet Forwarding Rate: 0.8928 Mpps
– MAC Address Table: 2K
– Jumbo Frame: 2 KB
SOFTWARE FEATURES
– Advanced Features
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery Button (Ports 1-4)
• Compatible With IEEE 802.3af Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology
– Transfer Method: Store and Forward
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents
• LS106LP
• Power Adapter
• Installation Guide
– Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
