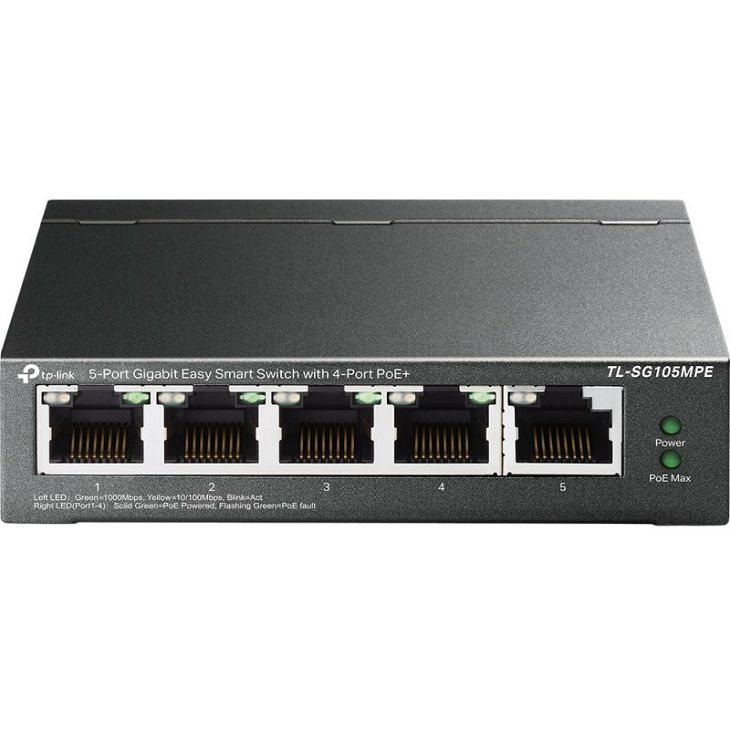

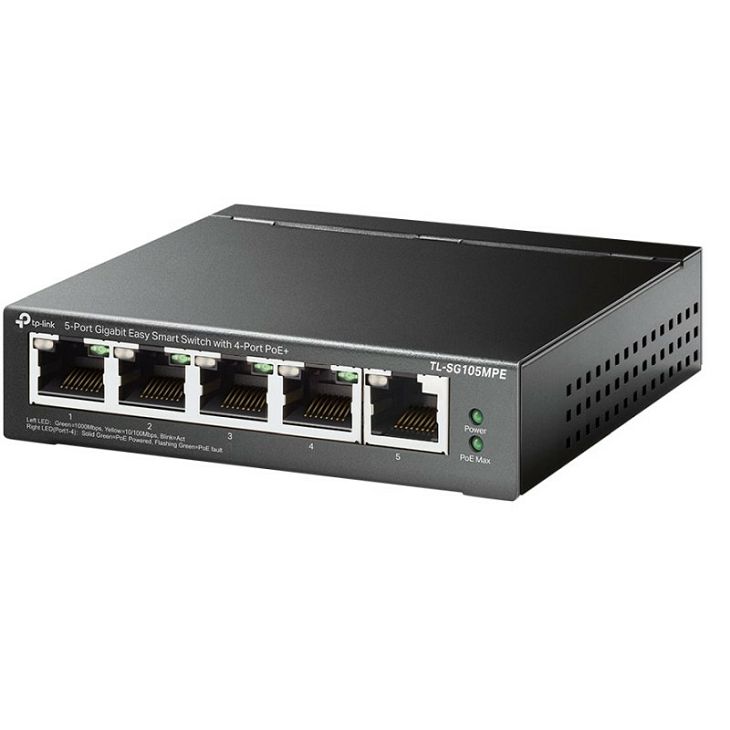

TP-Link 5-port Gigabit Easy Smart Switch – 4x PoE+, 30W po portu / 5x 10/100/1000 RJ45, fanless

– Five 10/100/1000Mbps RJ45 ports – Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable- Supports PoE power up to 120 W for all PoE ports*- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery- Simple network set-up on top of plug-and-play connectivity- Web-based user interface and Easy Smart Configuration Utility simplify configuration- Fanless design lowers energy consumption and eliminates operating noiseSpecificationsHARDWARE FEATURES- Standards and Protocols• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,• IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at- Interface • Five 10/100/1000Mbps RJ45 Ports• AUTO Negotiation/AUTO MDI/MDIX- Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100? STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100? STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100? STP (maximum 100m)- Fan Quantity: Fanless- Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)- PoE Ports (RJ45) • Standard: 802.3 af/at compliant• PoE Ports: Port 1- Port 4• PoE Power Budget: 120 W- Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)- Max Power Consumption: • 4.34 W (220 V/50 Hz with no PD connected)• 137.01 W (110 V/50 Hz with 120 W PD connected)- Max Heat Dissipation • 14.8 BTU/h (with no PD connected)• 467.17 BTU/h (with 120 W PD connected)PERFORMANCE- Switching Capacity: 10 Gbps- Packet Forwarding Rate: 7.44 Mpps- MAC Address Table: 2 K- Packet Buffer Memory: 1 Mb- Jumbo Frame: 16 KBSOFTWARE FEATURES- Quality of Service • Support Port-Based/802.1p/DSCP priority• Support 4 priority queues• Rate Limit• Storm Control- L2 Features • IGMP Snooping V1/V2/V3• Static Link Aggregation• Port Mirroring• Cable Diagnostics• Loop Prevention• PoE Auto Recovery• Extend Mode- VLAN • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)• MTU/Port/Tag VLAN- Management • Web-based GUI• Easy Smart Configuration Utility- Transmission Method: Store-And-ForwardOTHERS- Certification: FCC, CE, RoHS- Package Contents• TL-SG105MPE• Power Adapter• Installation Guide• Rubber Feet- System Requirements: Microsoft Windows for running Utility- Environment: Operating Temperature: 0?~40? (32?~104?)- Storage Temperature: -40?~70? (-40?~158?)- Operating Humidity: 10%~90%RH non-condensing- Storage Humidity: 5%~95%RH non-condensing
